Vehicle Structure Design

My Role

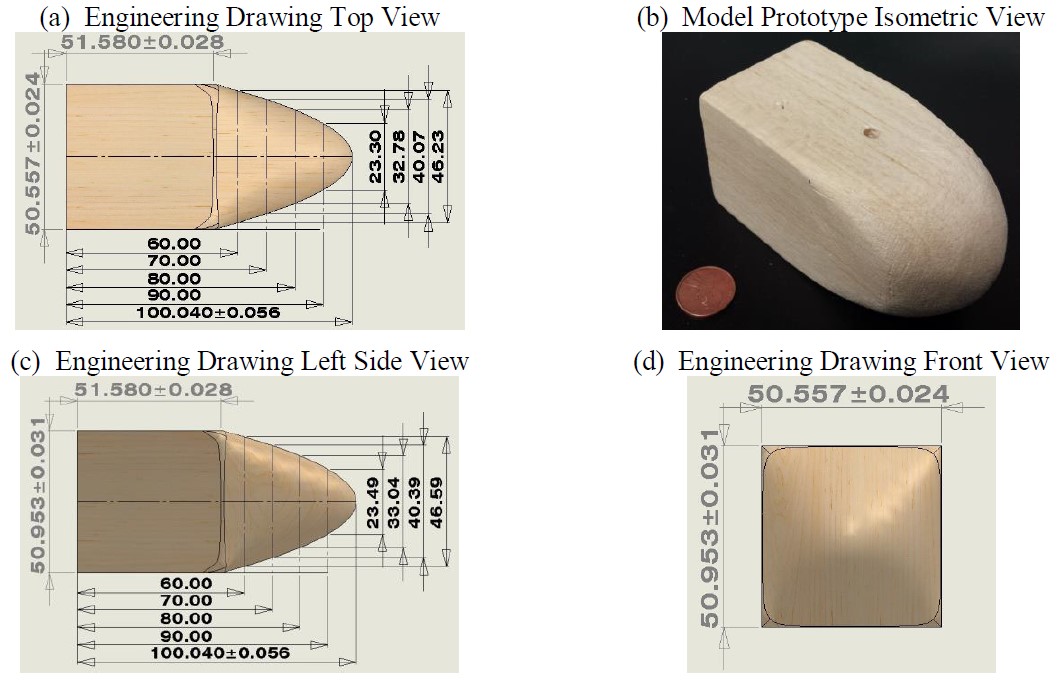

  • • Designed and fabricated a scaled wooden model for prediction of full scale sonar pod.

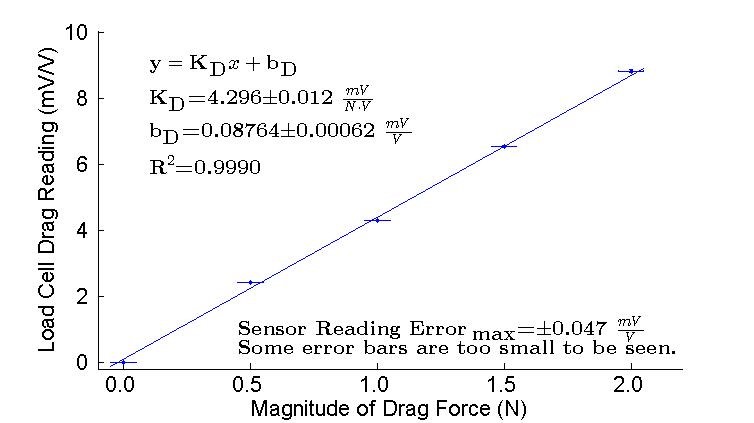

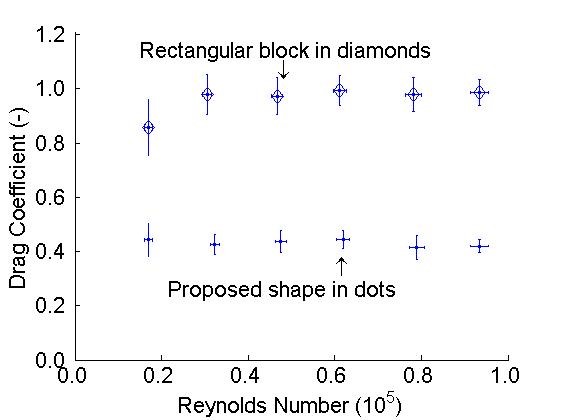

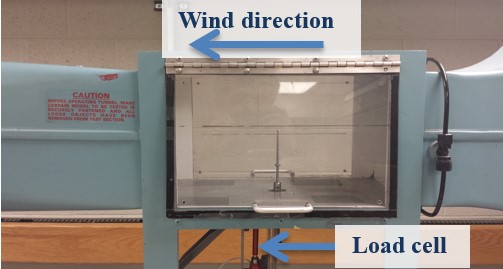

  • • Characterized drag and lift coefficient with respect to Reynolds number in a wind tunnel.

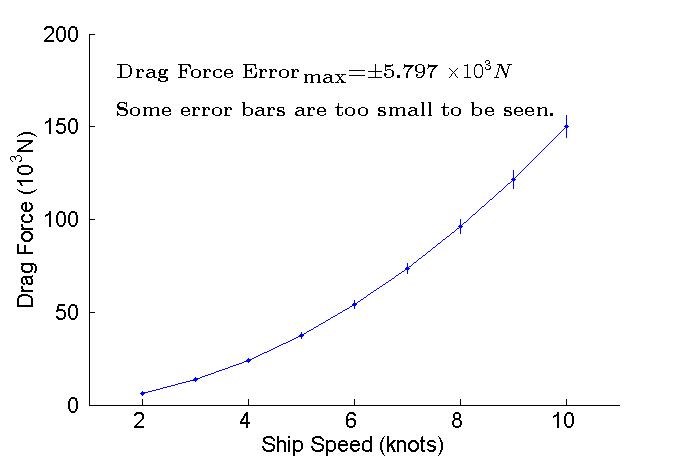

  • • Performed dimensional analysis to predict the required drag force a full scale sonar pod with identical relative geometry.



Demonstration

Documentation

Time and Location

Mar. 2014 - Apr. 2014

University of Michigan, Ann Arbor, MI, US



Team Members

J. Liu, T. Nerurkar, C. Wang, F. Xia
