Smart Phone Concept and Catapult Design

My Role

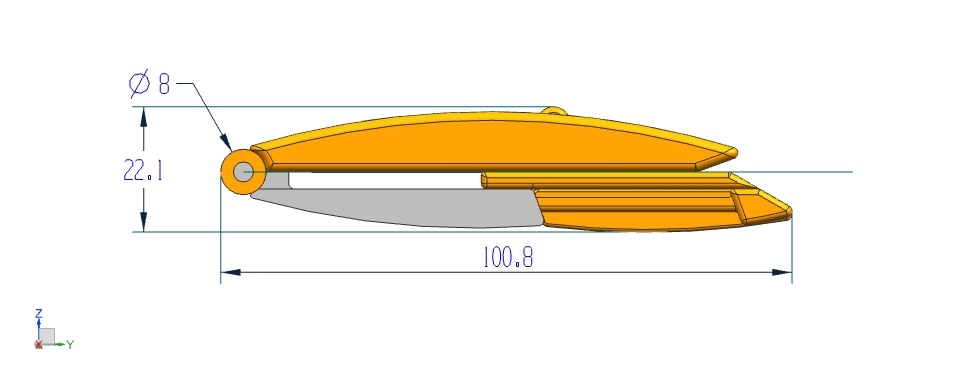

• • Modeled a concept smart phone with additional function in Unigraphics.

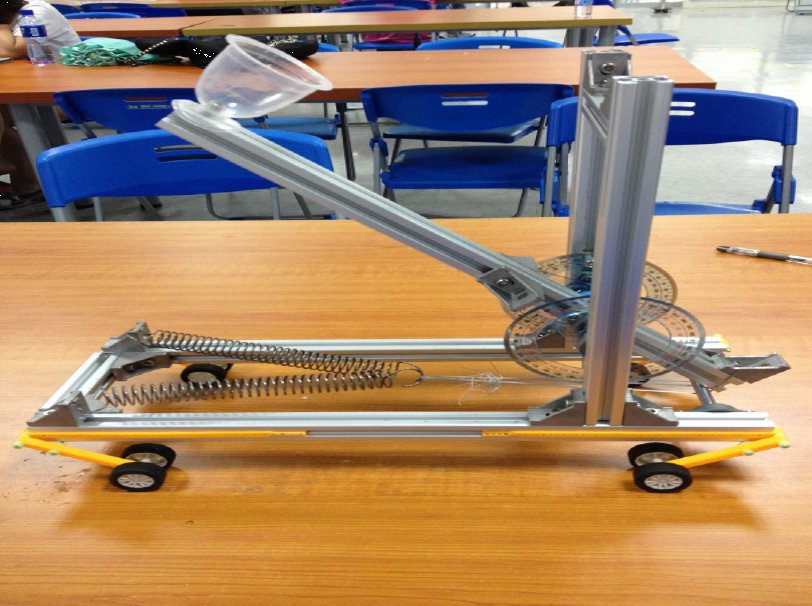

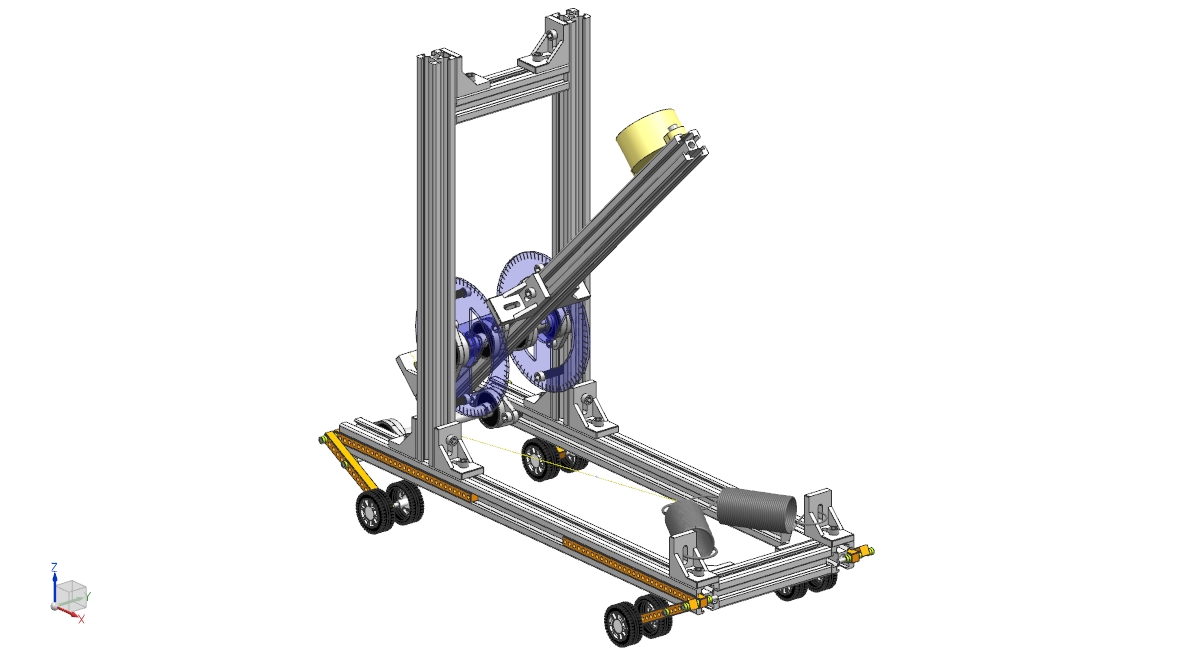

• • Designed a catapult with pure mechanical structure that can shoot a rubber ball up to 15 meter with 0.2 meter deviation.
• • Manufactured the catapult design in the machine shop using mill and lathe with design parameters fully realized.

Demonstration

Smart Phone Concept Design Documentation

Catapult Design and Manufacturing Documentation
