2: Creating DiskSuite Objects

When you create a DiskSuite object, you assign physical slices to a logical DiskSuite name. The DiskSuite objects that you can create using the steps in this chapter include:

Additional state database replicas

Metadevices (stripes, concatenations, mirrors, RAID5 metadevices, and trans metadevices)

Hot spare pools

Disksets

For general information on DiskSuite, refer to Solstice DiskSuite 4.1 Reference.

Note - For hints on how to name metadevices, refer to "Metadevice Naming Conventions."

Prerequisites for Creating DiskSuite Objects

Here are the prerequisites for the steps in this chapter:

Create initial state database replicas. If you have not done so, refer to Chapter 1, "Getting Started."

Identify slices that are available for use by DiskSuite. If necessary, use format(1M), fmthard(1M), or Disk Manager to repartition existing disks.

Make sure you have root privilege.

Have a current backup of all data.

If using the graphical user interface, start DiskSuite Tool.

To work with "local" metadevices (metadevices not in a diskset configuration), type:

---------------

# metatool &

---------------

To work with metadevices in a diskset, make sure you are the diskset owner and type:

---------------------------------

# metatool -s diskset_name &

---------------------------------

Creating Additional State Database Replicas

This section describes how to create additional state database replicas on a system that is up and running.

Preliminary Information for Creating Additional State Database Replicas

You can create state database replicas on either a dedicated slice, or on a slice that will be used as part of a simple metadevice, mirror, RAID5 metadevice, or trans metadevice. Refer to Solstice DiskSuite 4.1 Reference for guidelines on planning the location of state database replicas.

You can add additional state database replicas to the system at any time. The additional state database replicas can help ensure DiskSuite availability.

Adding additional state database replicas before creating a mirror can increase the mirror's performance. As a general rule, add one additional replica for each mirror you add to the system.

The maximum number of state database replicas is 50. This also applies to replicas that are part of a diskset.

How to Create Additional State Database Replicas (DiskSuite Tool)

After the initial state database replicas are created, you can create additional state database replicas as needed.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Double-click the MetaDB object in the Objects list.

DiskSuite Tool displays the MetaDB object on the canvas.

3. Click Slices to open the Slice Browser window.

4. Select the slice(s) for the additional state database replica(s). Drag the slice(s) to the top rectangle of the MetaDB object.

Use Control-click to select multiple slices.

5. [Optional] To add multiple state database replicas to the same slice, display the MetaDB object's Info window, type the slice in the Slice field, type the number of replicas to add in the Replicas field, click Attach, then click Close.

This method does not enable you to "change" the number of state database replicas on a slice, only to initially specify them.

6. Make sure that the MetaDB object is selected then click Commit.

7. To verify that the MetaDB object was committed, display the Configuration Log.

Example - Committed MetaDB Object

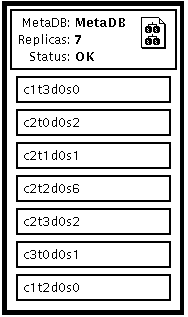

This example shows a new state database replica added to a MetaDB object.

The added slice that contains the state database replica, c1t2d0s0, appears at the bottom of the list of slices in the committed MetaDB object.

How to Create Additional State Database Replicas (Command Line)

After checking the prerequisites, and the preliminary information, use the metadb(1M) command to create additional state database replicas . Refer to the metadb(1M) man page for more information.

Example - Adding a State Database Replica

---------------------------------------------------------------------------

# metadb -a c0t2d0s0
# metadb
        flags         first blk      block count
...
     a        u         16              1034            /dev/dsk/c0t2d0s0

---------------------------------------------------------------------------

The -a option adds the additional state database replica to the system. The metadb command checks that the replica is active, as indicated by the a flag.

Example - Adding Two State Database Replicas to the Same Slice

---------------------------------------------------------------------------

# metadb -a -c 2 c0t2d0s0
# metadb
        flags         first blk      block count
...
     a        u         16              1034            /dev/dsk/c0t2d0s0
     a        u         1050            1034            /dev/dsk/c0t2d0s0

---------------------------------------------------------------------------

The -a option adds additional state database replicas to the system. The
- c 2 option places two replicas on the specified slice. The metadb command checks that the replicas are active, as indicated by the a flag.

Creating Stripes and Concatenations

This section describes how to create stripes and concatenations. To concatenate (add slices) to an existing stripe, refer to "How to Expand an Existing Concat/Stripe (DiskSuite Tool)."

Preliminary Information for Creating Stripes and Concatenations

In DiskSuite terms, stripes and concatenations are "simple metadevices" in that they are composed of slices. Both stripes and concatenations enable you to expand disk storage capacity. They can be used either directly or as the building blocks for mirrors and trans metadevices.

The system must contain at least three state database replicas before you can create stripes and concatenations. (See Chapter 1, "Getting Started.")

You can use multi-way stripes and concatenations (stripes or concatenations that consist of more than one slice) for any file system except the following:

Root (/)

swap (You can create multiple, single-slice swap metadevices)

/usr

/var

/opt

Any other file system accessed during a Solaris installation or upgrade

Do not stripe slices that are on the same physical disk. This practice eliminates simultaneous access and reduces performance.

If possible create metadevices from disks consisting of the same disk geometries. The historical reason is that UFS uses disk blocks based on disk geometries. Today, the issue is centered around performance: a stripe composed of disks with different geometries will only be as fast as its slowest disk.

When possible, distribute the slices of a stripe or concatenation across different controllers and busses. Using stripes that are each on different controllers increases the number of simultaneous reads and writes that can be performed.

Do not create a striped metadevice from an existing file system or data. Doing so will destroy data. Instead, use a concatenation. (You can create a striped metadevice from existing data, but you must dump and restore the data to the metadevice.)

Avoid striping slices with different sizes; this wastes disk space. If necessary, you can assign the unused portion to another slice. The slice must be repartitioned (using format(1M), fmthard(1M), or Storage Manager) to assign the unused disk space to another available slice name.

Note - Because DiskSuite Tool uses the Concat/Stripe object to represent both concatenated metadevices and striped metadevices, the only way to distinguish them by a glance is to study the pattern of rectangles in the Concat/Stripe object.

How to Create a Striped Metadevice (DiskSuite Tool)

Caution -

Do not create a striped metadevice from an existing file system or data. Doing so will destroy data. To create a striped metadevice from existing data, you must dump and restore the data to the metadevice.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Click the Concat/Stripe template to display an unassigned and uncommitted Concat/Stripe object on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and choose Info. Type the new metadevice name in the Device Name field and click the Attach button. Then click the Close button.

4. Click Slices to open the Slice Browser window.

5. Use Control-click to select multiple slices, and drag them into the Concat/Stripe object.

6. Click Stripe on the "Stripe or Concat?" dialog box that appears.

Note - If you drag slices one at a time, the "Stripe or Concat" dialog box does not appear, so be careful where you drop them on the Concat/Stripe object. To create a stripe, drop the slices on the rectangle labeled "stripe 0 of dx."

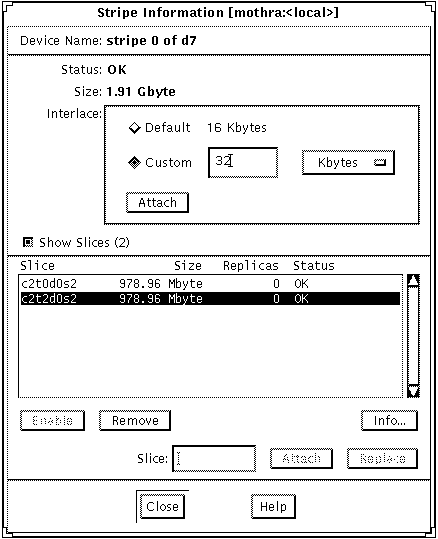

7. [Optional] To change the default interlace value of 16 Kbytes, point the cursor inside the rectangle where "stripe 0 of dx" is displayed, and display the pop-up Stripe Information window for this striped metadevice .

8. To change the interlace value, click Custom and type the new value in the field next to the Custom button. This value can be in Kbytes, Mbytes, or sectors. You can configure it by using the drop-down menu beside this field. Click Attach to set the value, then click Close.

For more information on setting the interlace value, refer to Solstice DiskSuite 4.1 Reference.

Note - The interlace value cannot be changed after committing the metadevice.

9. Click the top rectangle of the Concat/Stripe object, then click Commit.

10. To verify that striped metadevice was committed, display the Configuration Log.

Example - Committed Stripe

This example shows a newly created stripe made of two slices. The Stripe object displays the slices on top of each other in a single rectangle. Compare the presentation of a concatenated metadevice.

Where to Go From Here

To prepare the newly created stripe for a file system, refer to "How to Create a File System on a Metadevice (File System Manager)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

How to Create a Striped Metadevice (Command Line)

After checking the prerequisites, and the preliminary information, create the striped metadevice with the metainit(1M) command. Refer to the metainit(1M) man page for more information.

Caution -

Example - Creating a Striped Metadevice of Two Slices With a 32 Kbyte Interlace

----------------------------------------------

# metainit d10 1 2 c0t1d0s2 c0t2d0s2 -i 32k
d10: Concat/Stripe is setup

----------------------------------------------

The striped metadevice, d10, consists of a single stripe (the number 1) made of two slices (the number 2). The -i option sets the interlace to 32 Kbytes. (The interlace cannot be less than 8 Kbytes, nor greater than 100 Mbytes.) If interlace were not specified, the striped metadevice would use the default of 16 Kbytes. The system verifies that the Concat/Stripe object has been set up.

For more information on setting the interlace value, refer to Solstice DiskSuite 4.1 Reference.

Example - Creating a Striped Metadevice of Three Slices

------------------------------------------------

# metainit d20 1 3 c0t1d0s2 c0t2d0s2 c0t3d0s2
d20: Concat/Stripe is setup

------------------------------------------------

The striped metadevice, d20, consists of a single stripe (the number 1) made of three slices (the number 3). Because no interlace is specified, the striped metadevice uses the default of 16 Kbytes. The system verifies that the Concat/Stripe object has been set up.

Where to Go From Here

To prepare the newly created striped metadevice for a file system, refer to "How to Create a File System on a Metadevice (Command Line). An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

How to Create a Concatenation (DiskSuite Tool)

Use this procedure to create a concatenation from slices that do not contain any data. To concatenate existing data, such as a file system or a database, refer to "How to Expand a Slice Containing Existing Data (DiskSuite Tool).

1. Make sure you have met the prerequisites, and have read the prerequisites.

2. Click the Concat/Stripe template.

An unassigned and uncommitted Concat/Stripe object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and choose Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

4. Click Slices to display the Slice Browser window.

5. Use Control-click to select the slices to be concatenated and drag them into the Concat/Stripe object.

6. Click Concat on the "Stripe or Concat?" dialog box that appears.

7. Click the top rectangle of the Concat/Stripe object, then click Commit.

8. To verify that concatenation was committed, display the Configuration Log.

Example - Committed Concatenation Object

This example shows a newly created concatenation made of two slices. The object displays the slices in the concatenation so that each slice is in its own rectangle.

Where to Go From Here

To prepare the newly created concatenation for a file system, refer to "How to Create a File System on a Metadevice (File System Manager)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

How to Create a Concatenation (Command Line)

After checking the prerequisites, and the preliminary information, use the metainit(1M) command to create the concatenation. For more information, refer to the metainit(1M) man page.

Do not use this procedure on an existing file system or data. To concatenate existing data, such as a file system or a database, refer to "How to Expand a Slice Containing Existing Data (Command Line)."

The following examples create concatenations that do not contain any existing data.

Example - Creating a Concatenation of Two Slices

-----------------------------------------

# metainit d25 2 1 c0t1d0s2 1 c0t2d0s2
d25: Concat/Stripe is setup

-----------------------------------------

This example creates a concatenation, d25, consisting of two "stripes" (the number 2) each made of a single slice (the number 1 in front of each slice). The system verifies that the Concat/Stripe object has been set up.

Example - Creating a Concatenation of Four Slices

---------------------------------------------------------------

# metainit d40 4 1 c0t1d0s2 1 c0t2d0s2 1 c0t2d0s3 1 c0t2d1s3
d40: Concat/Stripe is setup

---------------------------------------------------------------

This example creates a concatenation called d40 consisting of four "stripes" (the number 4) each made of a single slice (the number 1 in front of each slice). The system verifies that the Concat/Stripe object has been set up.

Where to Go From Here

To prepare the newly created concatenation for a file system, refer to "How to Create a File System on a Metadevice (Command Line)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

Creating Mirrors

This section describes how to create a mirror from scratch, and how to mirror an existing file system, including root (/).

Note - In the past, when creating a mirror for a file system, the mount point would change. Now, in certain instances, you can create mirrors without having to change the mount point. Refer to "How to Create a Mirror From an Existing Concat/Stripe (Command Line)," for more information.

Preliminary Information for Creating Mirrors

A mirror is a metadevice composed of one or more submirrors. A submirror is made of one or more striped or concatenated metadevices. Mirroring data provides you with maximum data availability by maintaining multiple copies of your data.

The system must contain at least three state database replicas before you can create mirrors.

Before creating a mirror, create the striped metadevices or concatenated metadevices that will make up the mirror.

Any file system including root (/), swap, and /usr, or any application such as a database, can use a mirror.

Caution -

When creating a mirror for an existing file system, be sure that the initial submirror contains the data.

When creating a mirror, first create a one-way mirror, then attach a second submirror. This starts a resync operation and ensures that data is not corrupted.

To mirror an existing file system, use an additional slice of equal or greater size than the slice already used by the mirror. You can use a concatenated metadevice or striped metadevice of two or more slices that have adequate space to contain the mirror.

You can create a one-way mirror for a future two- or three-way mirror.

You can create up to a three-way mirror. However, two-way mirrors usually provide sufficient data redundancy for most applications, and are less expensive in terms of disk drive costs. A three-way mirror enables you to take a submirror offline and perform a backup while maintaining a two-way mirror for continued data redundancy.

Use the same size slices when creating submirrors. Using different size slices creates unused space in the mirror.

Avoid having slices of submirrors on the same disk. Also, when possible, use disks attached to different controllers to avoid single points-of-failure. For maximum protection and performance, place each submirror on a different physical disk and, when possible, on different disk controllers. For further data availability, use hot spares with mirrors.

Adding additional state database replicas before creating a mirror can increase the mirror's performance. As a general rule, add one additional replica for each mirror you add to the system.

If possible create mirrors from disks consisting of the same disk geometries. The historical reason is that UFS uses disk blocks based on disk geometries. Today, the issue is centered around performance: a mirror composed of disks with different geometries will only be as fast as its slowest disk.

How to Create a Mirror From Unused Slices (DiskSuite Tool)

The high-level steps in this procedure are:

Creating two striped metadevices or concatenated metadevices, which will be the submirrors. Refer to "How to Create a Striped Metadevice (DiskSuite Tool)" or "How to Create a Concatenation (DiskSuite Tool).

Creating a one-way mirror from one of the submirrors.

Creating the two-way mirror from the second submirror.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Click the Mirror template.

An unassigned and uncommitted Mirror object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and select Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

4. To create a one-way mirror, drag the first Concat/Stripe object (submirror) from the Objects list into the Mirror template. Click the top rectangle of the mirror, then click Commit.

5. To create a two-way mirror, drag the second Concat/Stripe object (submirror) from the Objects list into the Mirror. Click the top rectangle of the mirror then click Commit.

A resync of the second submirror begins. The Mirror object displays the resync progress.

6. To verify that the mirror was committed, display the Configuration Log.

Example - Committed Mirror Object

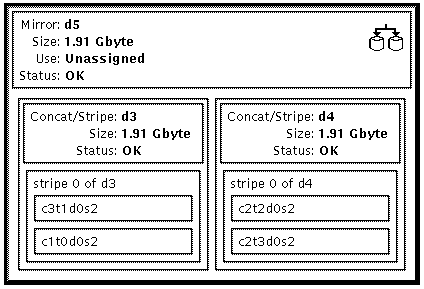

This example shows a committed mirror object, d5, consisting of two striped metadevice s (submirrors), d3 and d4.

Where to Go From Here

To prepare the newly created mirror for a file system, refer to "How to Create a File System on a Metadevice (File System Manager)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

How to Create a Mirror From Unused Slices (Command Line)

The high-level steps in this procedure are:

Creating two striped metadevices or concatenated metadevices, which will be the submirrors. Refer to "How to Create a Striped Metadevice (Command Line)" or "How to Create a Concatenation (Command Line)."

Using the metainit(1M) -m command to create a one-way mirror from one of the submirrors.

Using the metattach(1M) command to create the two-way mirror from the second submirror.

Check the prerequisites, and the preliminary information, before beginning. Refer to the metainit(1M) and metattach(1M) man pages for more information.

Example - Creating a Two-Way Mirror

--------------------------------

# metainit d51 1 1 c0t0d0s2
d51: Concat/Stripe is setup
# metainit d52 1 1 c1t0d0s2
d52: Concat/Stripe is setup
# metainit d50 -m d51
d50: Mirror is setup
# metattach d50 d52
d50: Submirror d52 is attached

--------------------------------

This example creates a two-way mirror, d50. The metainit(1M) command creates two submirrors (d51 and d52), which are actually concatenations. The metainit -m command creates the one-way mirror from the d51 concatenation. The metattach(1M) command attaches d52, creating a two-way mirror and causing a mirror resync. (Any data on the attached submirror is overwritten by the other submirror during the resync.) The system verifies that the objects are set up.

Where to Go From Here

To prepare a newly created mirror for a file system, refer to "How to Create a File System on a Metadevice (Command Line)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

How to Create a Mirror From a File System That Can Be Unmounted (DiskSuite Tool)

Use this procedure to mirror file systems that can be unmounted.

Note - Some file systems can be unmounted, while other file systems (like root (/), /usr, /opt, or swap) cannot be unmounted. To mirror these file systems, refer to "How to Create a Mirror From a File System That Cannot Be Unmounted (DiskSuite Tool)."

The high-level steps in this procedure are:

Identifying the slice that contains the existing file system to be mirrored

Putting the file system's slice in a Concat/Stripe object (which becomes submirror1)

Creating a second Concat/Stripe object (which becomes submirror2)

Dragging submirror1 to a mirror template and committing the mirror

Unmounting the file system

Dragging submirror2 to the mirror object and committing the mirror

Remounting the file system

Warning -

Do not create a multi-way mirror at first. Instead, commit a one-way mirror, then drag the additional submirror to the mirror template and commit the mirror again. This procedure initiates a mirror resync, ensuring that data is not corrupted.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Click Slices to display the Slice Browser window.

DiskSuite Tool should display the file system's name next to the name of the slice upon which it is mounted. If you mount a file system after starting DiskSuite Tool, select Rescan Configuration from the File menu.

3. Click the Concat/Stripe template.

DiskSuite Tool displays an unassigned and uncommitted Concat/Stripe object on the canvas and gives it a metadevice name.

4. [Optional] Change the default metadevice name.

Display the object's pop-up menu and select Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

5. Drag the file system's slice from the Slice Browser window into the Concat/Stripe object.

When the slice is dropped, a warning dialog box is displayed that the slice is mounted. Click Continue.

6. Make sure the Concat/Stripe object is selected, then click Commit.

Click Really Commit on the warning dialog box that appears. This creates a metadevice that contains the file system, which will be used as the first submirror.

Note - If an entry exists in the /etc/vfstab file for the file system, and the file system is currently mounted, DiskSuite Tool automatically updates it to use the concatenation's name.

7. Click the Concat/Stripe template.

DiskSuite Tool displays an unassigned and uncommitted Concat/Stripe object on the canvas and gives it a metadevice name.

8. [Optional] Change the default metadevice name.

See Step 4.

9. Drag a slice from the Slice Browser window into the Concat/Stripe object.

Select an unused slice, a slice that contains a state database replica, or more than one slice that is the same size or greater as the existing file system.

10. Make sure the Concat/Stripe object is selected, then click Commit.

This creates a metadevice, which will be used as the second submirror.

11. Click the Mirror template.

DiskSuite Tool displays an unassigned and uncommitted mirror object on the canvas and gives it a metadevice name.

12. [Optional] Change the default metadevice name.

See Step 4.

13. Drag the Concat/Stripe object containing the file system (created in Step 6) into the Mirror template. A warning dialog box appears. Click Continue.

Note - If an entry exists in the /etc/vfstab file for the file system, and the file system is currently mounted, DiskSuite Tool automatically updates it to use the mirror's metadevice name.

14. Click the top rectangle of the Mirror object, then click Commit.

This creates the one-way mirror.

15. Unmount the file system.

For example, use the umount(1M) command, or File System Manager.

16. Select Rescan Configuration from the File menu.

DiskSuite Tool updates the file system's current mount status.

17. Remount the file system on the mirror.

For example, use the mount(1M) command or File System Manager. (The mount point has now changed from the slice name to the mirror name.)

18. Select Rescan Configuration from the File menu.

DiskSuite Tool updates the file system's mount point. The Mirror object shows that it is being used by the file system.

19. Drag the second Concat/Stripe object (created in Step 10) into the Mirror object. Click on the top rectangle of the Mirror object then click Commit.

Data from the first submirror is resynced to the second mirror automatically.

20. To verify that the mirror was committed, display the Configuration Log.

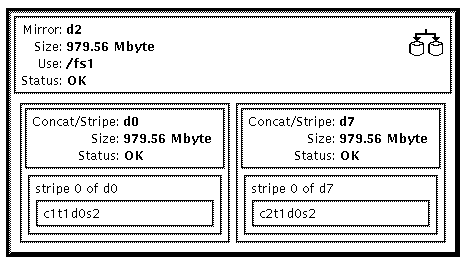

Example - Committed Mirror Object with a Mounted File System

This example shows a committed two-way mirror consisting of submirrors d0 and d7, which in turn consist of slices c1t1d0s2 and c2t1d0s2, respectively. The file system, /fs1, is mounted on the mirror, d2.

How to Create a Mirror From a File System That Can Be Unmounted (Command Line)

Use this procedure to mirror an existing file system that can be unmounted.

Note - To use the command line to mirror /usr, /opt, or swap, refer to "How to Create a Mirror From a File System That Cannot Be Unmounted (Command Line)." To use the command line to mirror root (/), refer to "SPARC: How to Create a Mirror From root (/) (Command Line)," or "x86: How to Create a Mirror From root (/) (Command Line)."

The high-level steps in this procedure are:

Identifying the slice that contains the existing file system to be mirrored

Using metainit(1M) -f to put the mounted file system's slice in a concat/stripe (submirror1)

Creating a second concat/stripe (submirror2)

Using metainit(1M) -m to create a one-way mirror with submirror1

Unmounting the file system

Editing the /etc/vfstab file so that the file system refers to the mirror

Remounting the file system

Using metattach to attach submirror2

Check the prerequisites, and the preliminary information, before beginning. Refer to the metainit(1M) and metattach(1M) man pages for more information.

Warning -

Do not create a multi-way mirror. Rather, create a one-way mirror with the metainit(1M) command then attach the additional submirrors with the metattach(1M) command. When the metattach(1M) command is not used, no resync operations occur and data could become corrupted. Also, do not create a two-mirror for a file system without first unmounting the file system and editing the /etc/vfstab file to reference the mirror metadevice before attaching the second submirror.

Example - Creating a Two-Way Mirror

---------------------------------------------------------------------------

# metainit -f d1 1 1 c1t0d0s0
d1: Concat/Stripe is setup
# metainit d2 1 1 c2t0d0s0
d2: Concat/Stripe is setup
# metainit d0 -m d1
d0: Mirror is setup
# umount /master
(Edit the /etc/vfstab file so that the file system references the mirror)
# mount /master
# metattach d0 d2
d0: Submirror d2 is attached

---------------------------------------------------------------------------

The -f option forces the creation of the first concatenation, d1, which contains the mounted file system /master on /dev/dsk/c1t0d0s0. The second concatenation, d2, is created from /dev/dsk/c2t0d0s0. (This slice must be the same size or greater than that of d1.) The metainit command with the -m option creates the one-way mirror, d0, from d1.

Next, /master is unmounted and its entry changed in the /etc/vfstab file to reference the mirror. For example, the following line:

----------------------------------------------------------

/dev/dsk/c1t0d0s0 /dev/rdsk/c1t0d0s0 /master ufs 2 yes -

----------------------------------------------------------

should be changed to:

----------------------------------------------------

/dev/md/dsk/d0 /dev/md/rdsk/d0 /master ufs 2 yes -

----------------------------------------------------

Finally, the /master file system is remounted and submirror d2 attached to the mirror, causing a mirror resync. (The system verifies that the concatenations and the mirror are set up, and that submirror d2 is attached.)

How to Create a Mirror From a File System That Cannot Be Unmounted (DiskSuite Tool)

Use this procedure to mirror file systems, such as root (/), /usr, /opt, and swap, that cannot be unmounted during normal system usage.

The high-level steps in this procedure are:

Putting the file system's slice in a single-slice Concat/Stripe object (submirror1)

Creating a second Concat/Stripe object (submirror2)

Dragging submirror1 to a mirror template and committing the mirror

Rebooting

Dragging submirror2 to the Mirror object and committing the mirror

Recording the alternate boot path if mirroring root (/)

Note - When mirroring root (/), it is essential that you record the secondary root slice name to reboot the system if the primary submirror fails. This information should be written down, not recorded on the system, which may not be available. See Chapter 7, "Troubleshooting the System," for details on recording the alternate boot device, and on booting from the alternate boot device.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Click the Concat/Stripe template.

DiskSuite Tool displays an unassigned and uncommitted Concat/Stripe object on the canvas and gives it a metadevice name.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and select Info. Type the new metadevice name in the Device Name field and click the Attach button. Then click the Close button .

4. Click Slices to display the Slice Browser window.

5. Drag the slice containing the file system you want to mirror to the top rectangle of the Concat/Stripe object.

When you drop the slice, DiskSuite Tool displays a warning dialog box. Click the Continue button.

6. Click the top rectangle of the Concat/Stripe object, then click Commit.

Click the Really Commit button if DiskSuite Tool displays a warning dialog box. This creates a one-way concatenation that contains the file system, which will be used as the first submirror.

Note - If an entry exists in the /etc/vfstab file for the file system, and the file system is currently mounted, DiskSuite Tool automatically updates it to use the concatenation's metadevice name.

7. Click the Concat/Stripe template.

DiskSuite Tool displays an unassigned and uncommitted Concat/Stripe object on the canvas and gives it a metadevice name.

8. [Optional] Change the default metadevice name.

See Step 3.

9. Drag a slice from the Slice Browser window to this Concat/Stripe object.

When creating this one-way concatenated metadevice, use an unused slice that is the same size as or greater than the existing file system.

10. Click the top rectangle of the Concat/Stripe object then click Commit.

This creates the second submirror.

11. Click the Mirror template.

DiskSuite Tool displays an unassigned and uncommitted Mirror object on the canvas and gives it a metadevice name.

12. [Optional] Change the default metadevice name.

See Step 3.

13. Drag the Concat/Stripe object that contains the file system into the Mirror template.

Click the Continue button if DiskSuite Tool displays a warning dialog box.

Note - If an entry exists in the /etc/vfstab file for the file system, and the file system is currently mounted, DiskSuite Tool automatically updates it to use the mirror's metadevice name.

14. Click the top rectangle of the Mirror object then click Commit.

15. Reboot.

16. Restart DiskSuite Tool.

17. Drag the second Concat/Stripe object created in Step 10 into the Mirror object to create the two-way mirror. Then click Commit.

Data from the first submirror is resynced to the second mirror.

18. If you are mirroring root (/), record the alternate boot path.

Refer to Chapter 7, "Troubleshooting the System," for more information.

19. To verify that the mirror was committed, display the Configuration Log.

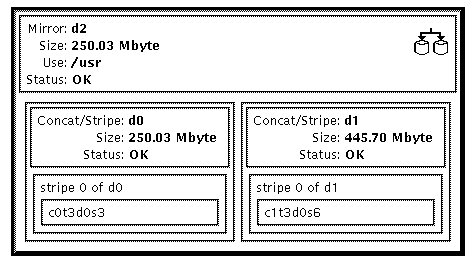

Example - Committed Mirror for `/usr`

This example shows a committed mirror containing the /usr file system.

How to Create a Mirror From a File System That Cannot Be Unmounted (Command Line)

Use this procedure to mirror file systems, such as /usr, /opt, and swap, that cannot be unmounted during normal system usage.

Note - To use the command line to mirror root (/), refer to "SPARC: How to Create a Mirror From root (/) (Command Line)," or "x86: How to Create a Mirror From root (/) (Command Line)."

The high-level steps in this procedure are:

Using metainit(1M) -f to put the file system's slice in a single slice (one-way) concat/stripe (submirror1)

Creating a second concat/stripe (submirror2)

Using metainit(1M) to create a one-way mirror from submirror1

Editing the /etc/vfstab file so that the file system refers to the mirror

Rebooting

Using metattach(1M) to attach submirror2

Warning -

Do not create a multi-way mirror. Rather, create a one-way mirror with the metainit(1M) command, then attach the additional submirrors with the metattach(1M) command. When the metattach(1M) command is not used, no mirror resync occurs and data could become corrupted.

After checking the prerequisites, and the preliminary information, use the metainit(1M) and metattach(1M) commands to create the mirror.

Example - Creating a Mirror From `/usr`

----------------------------------------------------------------

# metainit -f d12 1 1 c0t3d0s6
d12: Concat/Stripe is setup
# metainit d22 1 1 c1t0d0s6
d22: Concat/Stripe is setup
# metainit d2 -m d12
d2: Mirror is setup
(Edit the /etc/vfstab file so that /usr references the mirror)
# reboot
...
# metattach d2 d22
d2: Submirror d22 is attached

----------------------------------------------------------------

The -f option forces the creation of the first concatenation, d12, which contains the mounted file system /usr on /dev/dsk/c0t3d0s6. The second concatenation, d22, is created from /dev/dsk/c1t0d0s6. (This slice must be the same size or greater than that of d12.) The metainit command with the -m option creates the one-way mirror d2 using the concatenation containing /usr. Next, the /etc/vfstab file must be edited to change the entry for /usr to reference the mirror. For example, the following line:

-------------------------------------------------------

/dev/dsk/c0t3d0s6 /dev/rdsk/c0t3d0s6 /usr ufs 1 yes -

-------------------------------------------------------

should be changed to:

-------------------------------------------------

/dev/md/dsk/d2 /dev/md/rdsk/d2 /usr ufs 1 yes -

-------------------------------------------------

After a reboot, the second submirror d22 is attached to the mirror, causing a mirror resync. (The system verifies that the concatenations and the mirror are set up, and that submirror d22 is attached.)

Example - Creating a Mirror From `swap`

----------------------------------------------------------------

# metainit -f d11 1 1 c0t0d0s1
d11: Concat/Stripe is setup
# metainit d21 1 1 c1t0d0s1
d21: Concat/Stripe is setup
# metainit d1 -m d11
d1: Mirror is setup
(Edit the /etc/vfstab file so that swap references the mirror)
# reboot
...
# metattach d1 d21
d1: Submirror d21 is attached

----------------------------------------------------------------

The -f option forces the creation of the first concatenation, d11, which contains the mounted file system swap on /dev/dsk/c0t0d0s1. The second concatenation, d21, is created from /dev/dsk/c1t0d0s1. (This slice must be the same size or greater than that of d11.) The metainit command with the -m option creates the one-way mirror d1 using the concatenation containing swap. Next, if there is an entry for swap in the /etc/vfstab file, it must be edited to reference the mirror. For example, the following line:

-----------------------------------

/dev/dsk/c0t0d0s1 - - swap - no -

-----------------------------------

should be changed to:

--------------------------------

/dev/md/dsk/d1 - - swap - no -

--------------------------------

After a reboot, the second submirror d21 is attached to the mirror, causing a mirror resync. (The system verifies that the concatenations and the mirror are set up, and that submirror d21 is attached.)

SPARC: How to Create a Mirror From root (/) (Command Line)

Use this task to mirror root (/) on a SPARC system.

Note - The task for using the command line to mirror root (/) on an x86 system is different from the task used for a SPARC system. To mirror root (/) on an x86 system, refer to "x86: How to Create a Mirror From root (/) (Command Line)." When mirroring root (/), it is essential that you record the secondary root slice name to reboot the system if the primary submirror fails. This information should be written down, not recorded on the system, which may not be available. See Chapter 7, "Troubleshooting the System," for details on recording the alternate boot device, and on booting from the alternate boot device.

The high-level steps in this procedure are:

Using metainit(1M) -f to put the root (/) slice in a single slice (one-way) concat (submirror1)

Creating a second concat (submirror2)

Using metainit(1M) to create a one-way mirror with submirror1

Running the metaroot(1M) command

Running the lockfs(1M) command

Rebooting

Using metattach(1M) to attach submirror2

Recording the alternate boot path

Make sure you have met the prerequisites, and have read the preliminary information. For more information refer to the metainit(1M), metaroot(1M), and metattach(1M) man pages.

Example - SPARC: Creating a Mirror From root (`/`)

-------------------------------------------------------------------------------

# metainit -f d11 1 1 c0t3d0s0
d11: Concat/Stripe is setup
# metainit d12 1 1 c1t3d0s0
d12: Concat/Stripe is setup
# metainit d10 -m d11
d10: Mirror is setup
# metaroot d10
# lockfs -fa
# reboot
...
# metattach d10 d12
d10: Submirror d12 is attached
# ls -l /dev/rdsk/c1t3d0s0
lrwxrwxrwx   1 root     root          88 Feb  8 15:51 /dev/rdsk/c1t3d0s0 -
../../devices/iommu@f,e0000000/vme@f,df010000/SUNW,pn@4d,1080000/ipi3sc@0,0/i
d@3,0:a,raw

-------------------------------------------------------------------------------

The -f option forces the creation of the first concatenation, d11, which contains the mounted file system root (/) on /dev/dsk/c0t3d0s0. The second concatenation, d12, is created from /dev/dsk/c1t3d0s0. (This slice must be the same size or greater than that of d11.) The metainit command with the -m option creates the one-way mirror d10 using the concatenation containing root (/). Next, the metaroot command edits the /etc/vfstab and /etc/system files so that the system may be booted with the root file system (/) on a metadevice. (It is a good idea to run lockfs -fa before rebooting.) After a reboot, the submirror d12 is attached to the mirror, causing a mirror resync. (The system verifies that the concatenations and the mirror are set up, and that submirror d12 is attached.) The ls -l command is run on the root raw device to determine the path to the alternate root device in case the system needs to be booted from it.

x86: How to Create a Mirror From root (/) (Command Line)

Use this task to mirror root (/) on an x86 system.

The high-level steps in this task are:

Creating a Solaris partition large enough for the root (/) mirror

Installing the boot information on the alternate boot disk

Using metainit(1M) -f to put the root (/) slice in a single slice (one-way) concat (submirror1)

Creating a second concat (submirror2)

Using metainit(1M) to create a one-way mirror with submirror1

Running the metaroot(1M) command

Running the lockfs(1M) command

Rebooting

Using metattach(1M) to attach submirror2

Recording the alternate boot path

Note - You cannot mirror root (/) on an IDE drive.

For the purpose of the following procedures, assume that the alternate disk is c0t1d0.

Create a Solaris Partition

Use these steps to create a Solaris partition on an x86 system.

1. Create the disk partition using the

fdisk(1M)

command.

-------------------------------

# fdisk /dev/rdsk/c0t1d0p0

-------------------------------

a. If this is the first time you have run

fdisk(1M)

, you see the following:

-------------------------------------------------------------

The recommended default partitioning for your disk is:
a 100% "SOLARIS System" partition
To select this, please type "y". To partition your disk
differently, type "n" and the "fdisk" program will let you
select other partitions.

-------------------------------------------------------------

b. If you have previously run

fdisk(1M)

, you see a menu similar to the following:

-----------------------------------------------------------------

        Total disk size is 1855 cylinders
        Cylinder size is 1110 (512 byte) blocks
Partition    Status    Type        Start    End    Length    %
=========    ======    ========    =====    ===    ======   ===
    1        Active    SOLARIS         1   1854     1854    100
SELECT ONE OF THE FOLLOWING:
     1.  Create a partition
     2.  Change Active (Boot from) partition
     3.  Delete a partition
     4.  Exit (Update disk configuration and exit)
     5.  Cancel (Exit without updating disk configuration)
Enter Selection:

-----------------------------------------------------------------

2. Select menu items to ensure that you have a Solaris partition large enough for the root (/) mirror. The Solaris partition should be five cylinders larger than the size needed to hold the root (/) slice.

Make sure that the Solaris partition is active. Otherwise, you will be unable to boot from it.

3. Run the

format(1M)

command on the Solaris partition to create a slice for the root (/) mirror:

---------------------------------------------------------------

# format
Searching for disks...done
AVAILABLE DISK SELECTIONS:
       0. c0t0d0 <DEFAULT cyl 2676 alt 2 hd 9 sec 85'>
          /eisa/ncrs@8000,0/cmdk@0,0
       1. c1t1d0 <DEFAULT cyl 1865 alt 2 hd 7 sec 80  ABCDEFG
          /eisa/eha@1000,0/cmdk@1,0
       2. c1t2d0 <DEFAULT cyl 1461 alt 2 hd 9 sec 64'>
          /eisa/eha@1000,0/cmdk@2,0
       3. c1t3d0 <DEFAULT cyl 1461 alt 2 hd 9 sec 64'>
          /eisa/eha@1000,0/cmdk@3,0
       4. c1t4d0 <DEFAULT cyl 1865 alt 2 hd 7 sec 80'>
          /eisa/eha@1000,0/cmdk@4,0
Specify disk (enter its number): 1
selecting c1t1d0: ABCDEFG
[disk formatted]
FORMAT MENU:
       disk      - select a disk
       type      - select (define) a disk type
       partition - select (define) a partition table
       current   - describe the current disk
       format    - format and analyze the disk
       fdisk     - run the fdisk program
       repair    - repair a defective sector
       label     - write label to the disk
       analyze   - surface analysis
       defect    - defect list management
       backup    - search for backup labels
       verify    - read and display labels
       save      - save new disk/partition definitions
       inquiry   - show vendor, product and revision
       volname   - set 8-character volume name
       quit

---------------------------------------------------------------

4. Select

partition

to define a partition:

------------------------------------------------------------

format partition
PARTITION MENU:
        0      - change `0' partition
        1      - change `1' partition
        2      - change `2' partition
        3      - change `3' partition
        4      - change `4' partition
        5      - change `5' partition
        6      - change `6' partition
        7      - change `7' partition
        select - select a predefined table
        modify - modify a predefined partition table
        name   - name the current table
        print  - display the current table
        label  - write partition map and label to the disk
        quit
partition 0
Part     Tag       Flag	      Cylinders	    Size    Blocks				Blocks
  0      unassigned   wm	     0	       0     (0/0/0)
Enter partition id tag [unassigned]: root
Enter partition permission flags [wm]: wm
Enter new starting cyl [0]: 4
Enter partition size [0b, 0c, 0.00mb]: 400mb
partition label
Ready to label disk, continue? y
partition'>

------------------------------------------------------------

5. Exit from the

partition

menu and the

format(1M)

program by typing the

quit

command twice.

----------------------------------------------------------

partition quit
FORMAT MENU:
        disk       - select a disk
        type       - select (define) a disk type
        partition  - select (define) a partition table
        current    - describe the current disk
        format     - format and analyze the disk
        repair     - repair a defective sector
        label      - write label to the disk
        analyze    - surface analysis
        defect     - defect list management
        backup     - search for backup labels
        verify     - read and display labels
        save       - save new disk/partition definitions
        inquiry    - show vendor, product and revision
        volname    - set 8-character volume name
        quit
format quit

----------------------------------------------------------

Note the following important information about the Solaris root (/) partition:

Its I.D. tag must be "root"

Its size must be greater than or equal to the size of the original root partition

It should not use cylinders 0-2

Install Boot Information

Use the installboot command to install the boot information on the alternate boot disk:

-----------------------------------------

# installboot /usr/lib/fs/ufs/pboot \
  /usr/lib/fs/ufs/bootblk \
  /dev/rdsk/c0t1d0s0

-----------------------------------------

Example - x86: Creating a Mirror From root (`/`)

This example assumes that a Solaris partition has been created and installed with the boot information using the tasks above.

--------------------------------------------------------------------

# metainit -f d10 1 1 c0t0d0s0
d10:Concat/Stripe is setup
# metainit d20 1 1 c1t0d0s0
d20: Concat/Stripe is setup
# metainit d0 -m d10
d10: Mirror is setup
# metaroot d0
# lockfs -fa
# reboot
...
# metattach d0 d20
d0: Submirror d20 is attached
# ls -l /dev/rdsk/c1t0d0s0
lrwxrwxrwx 1  root root  55 Mar 5 12:54  /dev/rdsk/c1t0d0s0 - ../.
devices/eisa/eha@1000,0/cmdk@1,0:a

--------------------------------------------------------------------

The -f option forces the creation of the first concatenation, d10, which contains the mounted file system root (/) on /dev/dsk/c0t0d0s0. The second concatenation, d20, is created from /dev/dsk/c1t0d0s0. (This slice must be the same size or greater than that of d10.) The metainit command with the -m option creates the one-way mirror d0 using the concatenation containing root (/). Next, the metaroot command edits the /etc/vfstab and /etc/system files so that the system may be booted with the root file system (/) on a metadevice. After a reboot, the submirror d20 is attached to the mirror, causing a mirror resync. (The system verifies that the concatenations and the mirror are set up, and that submirror d20 is attached.) Using the ls -l command on the root raw device determines the path to the alternate root device in case the system needs to be booted from it.

Creating RAID5 Metadevices

This section describes how to create RAID5 metadevices.

Preliminary Information for Creating RAID5 Metadevices

A RAID5 metadevice uses storage capacity equivalent to one slice in the metadevice to store redundant information about user data stored on the remainder of the RAID5 metadevice's slices. The redundant information is distributed across all slices in the metadevice. Like a mirror, a RAID5 metadevice increases data availability, but with a minimum of cost in terms of hardware.

The system must contain at least three state database replicas before you can create RAID5 metadevices.

A RAID5 metadevice can only handle a single slice failure.

Follow the 20-percent rule when creating a RAID5 metadevice: because of the complexity of parity calculations, metadevices with greater than about 20 percent writes should probably not be RAID5 metadevices. If data redundancy is needed, consider mirroring.

There are drawbacks to a slice-heavy RAID5 metadevice: the more slices a RAID5 metadevice contains, the longer read and write operations will take if a slice fails.

A RAID5 metadevice must consist of at least three slices.

A RAID5 metadevice can be grown by concatenating additional slices to the metadevice. The new slices do not store parity information, however they are parity protected. The resulting RAID5 metadevice continues to handle a single slice failure.

The interlace value is key to RAID5 performance. It is configurable at the time the metadevice is created; thereafter, the value cannot be modified. The default interlace value is 16 Kbytes. This is reasonable for most applications.

Use the same size disk slices. Creating a RAID5 metadevice from different size slices results in unused disk space in the metadevice.

Do not create a RAID5 metadevice from a slice that contains an existing file system. Doing so will erase the data during the RAID5 initialization process.

RAID5 metadevices cannot be striped, concatenated, or mirrored.

How to Create a RAID5 Metadevice (DiskSuite Tool)

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Click the RAID5 template.

An unassigned and uncommitted RAID5 object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

4. [Optional] Change the default interlace size of 16 Kbytes.

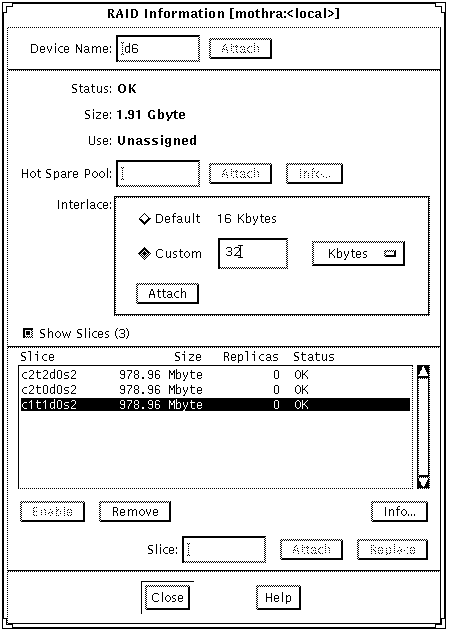

Display the object's pop-up menu and choose Info. The RAID Information window for this RAID5 metadevice appears.

5. To change the interlace value, click Custom and type the new value in the

field next to Custom. This value can be in Kbytes, Mbytes, or sectors, and is configurable via the drop-down menu beside this field. Click Attach to set the value, then click Close.

See Solstice DiskSuite 4.1 Reference for more information on setting the interlace value.

6. Click Slices to open the Slice Browser.

7. Select the slices and drag them to the top of the RAID5 object.

Use Control-click to select multiple slices. You need at least three slices.

8. Click the top rectangle of the RAID5 object then click Commit.

DiskSuite starts initializing the RAID5 metadevice.

9. To verify that the RAID5 metadevice was committed, display the Configuration Log.

Note - You must wait for the initialization to finish before you can use the RAID5 metadevice.

Example

This example shows a RAID5 metadevice. Notice that the size displayed is 1.95 GBytes even though the metadevice is made of three 999.63 MByte slices. (One slice's worth of storage capacity is used for parity.)

Where to Go From Here

To prepare the newly created RAID5 metadevice for a file system, refer to "How to Create a File System on a Metadevice (File System Manager) ." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

To associate a hot spare pool with a RAID5 metadevice, refer to "How to Associate a Hot Spare Pool (DiskSuite Tool)."

How to Create a RAID5 Metadevice (Command Line)

After checking the prerequisites, and the on preliminary information, use the metainit(1M) command to create the RAID5 metadevice. For more information, refer to the metainit(1M) man page.

Example - Creating a RAID5 Metadevice of Three Slices

----------------------------------------------

# metainit d45 -r c2t3d0s2 c3t0d0s2 c4t0d0s2
d45: RAID is setup

----------------------------------------------

The RAID5 metadevice d45 is created with the -r option from three slices. Because no interlace is specified, d45 uses the default of 16 Kbytes. The system verifies that the RAID5 metadevice has been set up, and begins initializing the metadevice.

Note - You must wait for the initialization to finish before you can use the RAID5 metadevice.

Where to Go From Here

To prepare the newly created RAID5 metadevice for a file system, refer to "How to Create a File System on a Metadevice (Command Line)." An application, such as a database, that uses the raw metadevice must have its own way of recognizing the metadevice.

To associate a hot spare pool with a RAID5 metadevice, refer to "How to Associate a Hot Spare Pool (Command Line)."

Creating Trans Metadevices

This section describes how to create trans metadevices (UFS logging).

Preliminary Information for Creating Trans Metadevices

A trans metadevice enables UFS logging, which is the process of recording UFS updates in a log before the updates are applied to the UNIX file system. A trans metadevice can increase overall file system availability after reboot, because it reduces the amount of time fsck(1M) has to run when the system reboots.

The system must contain at least three state database replicas before you can create a trans metadevice.

The trans metadevice normally has two devices: the master device and the logging device. The master contains the file system that is being logged. The logging device contains the log and can be shared by several file systems. It is a sequence of records, each of which describes a change to a file system. Both the master device and the logging device can be a slice or a metadevice.

Though logs can be shared between file systems, heavily-used file systems should have their own logging device.

Small file systems with mostly read operations probably do not need to be logged.

Any UFS, except root (/), can be logged.

Even if you don't have an available slice for a logging device, you can still set up a trans metadevice without a logging device. This is useful if you plan to enable logging on exported file systems, but do not have an available slice for the logging device at this time.

Before creating trans metadevices, identify the slices or metadevice to be used as the master devices and logging devices.

Avoid placing logs on heavily-used disks.

Do not use a RAID5 metadevice as a logging device. Instead, use a mirror for data redundancy.

Logs (the logging device) can be placed on a slice that already contains a state database replica.

Plan on using one megabyte of log space as a minimum, and an additional one megabyte of log space per 100 megabytes of file system data, up to a maximum log size of 64 Mbytes. Logs greater than 64 Mbytes waste space.

The master devices and logging devices of the same trans metadevice should be located on separate drives and possibly separate controllers.

Caution -

Mirroring logging devices is strongly recommended. Losing the data in a logging device because of device errors can leave a file system in an inconsistent state which fsck(1M) may not be able to fix without user intervention. Using a mirror for the master device is a good idea to ensure data redundancy.

How to Create a Trans Metadevice for a File System That Can Be Unmounted (DiskSuite Tool)

Before beginning, identify the slice or metadevice that contains the file system. You'll need this when creating the master device. Also, decide if you want to mirror the logging device. If so, use "How to Create a Trans Metadevice Using Mirrors (DiskSuite Tool)." If you are mirroring the logging device, it is a good idea that the master device be a mirror also.

You can create a file system on the trans metadevice later if the master device doesn't already have a file system.

To create a trans metadevice for a file system, such as /usr, that cannot be unmounted during normal system operation, refer to "How to Create a Trans Metadevice For a File System That Cannot Be Unmounted (DiskSuite Tool)."

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Click the trans metadevice template.

An unassigned and uncommitted Trans Metadevice object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and choose Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

4. Drag the slice or metadevice that will contain the master device to the master rectangle in the trans metadevice template.

When you can drag a slice from the Slice Browser, or drag a metadevice from the Objects list, a warning dialog box is displayed. Click Continue.

Note - If an entry exists in the /etc/vfstab file for the file system, and the file system is currently mounted, DiskSuite Tool automatically updates it to use the trans metadevice's name.

5. Select the slice or metadevice that will contain the logging device, and drag it to the log rectangle of the trans metadevice template.

A Warning dialog box appears if the logging device is not mirrored.

6. Click the top rectangle of the Trans Metadevice object then click Commit.

7. Unmount then remount the file system on the trans metadevice.

Logging becomes effective for the file system when you remount the system. On subsequent reboots, instead of checking the file system, fsck(1M) displays this message:

--------------------------------

/dev/md/rdsk/dx: is logging.

--------------------------------

8. To verify that the trans metadevice was committed, display the Configuration Log.

Example - Committed Trans Metadevice Object

This example shows a committed trans metadevice, d8, consisting of slice c3t0d0s5 for the master device, and a mirror, d5, for the logging device. Notice how the master and logging devices are displayed within the trans object.

How to Create a Trans Metadevice for a File System That Can Be Unmounted (Command Line)

After checking the prerequisites, and the preliminary information, create the trans metadevice with the metainit(1M) command. Refer to the metainit(1M) man page for more information.

Example - Creating a Trans Metadevice With a Slice for the Master Device

-------------------------------------------------------------------------------------

# umount /home1
# metainit d63 -t c0t2d0s2 c2t2d0s1
d63: Trans is setup
(Edit the /etc/vfstab file so that the file system references the trans metadevice)
# mount /home1

-------------------------------------------------------------------------------------

Slice /dev/dsk/c0t2d0s2 contains a file system mounted on /home1. The slice to contain the logging device is /dev/dsk/c2t2d0s1. First, the file system is unmounted. The metainit command with the -t option creates the trans metadevice, d63.

Next, the /etc/vfstab file must be edited to change the entry for the file system to reference the trans metadevice. For example, the following line:

---------------------------------------------------------

/dev/dsk/c0t2d0s2 /dev/rdsk/c0t2d0s2 /home1 ufs 2 yes -

---------------------------------------------------------

should be changed to:

-----------------------------------------------------

/dev/md/dsk/d63 /dev/md/rdsk/d63 /home1 ufs 2 yes -

-----------------------------------------------------

Logging becomes effective for the file system when it is remounted.

On subsequent reboots, instead of checking the file system, fsck(1M) displays a logging message for the trans metadevice:

------------------------------

# reboot
...
/dev/md/rdsk/d63: is logging

------------------------------

Example - Creating a Trans Metadevice With a Stripe for the Master Device

-------------------------------------------------------------------------------------

# umount /home2
# metainit d40 -t d2 c1t2d0s0
d40: Trans is setup
(Edit the /etc/vfstab file so that the file system references the trans metadevice)
# mount /home2

-------------------------------------------------------------------------------------

Stripe d2 contains a file system mounted on /home2. The slice to contain the logging device is /dev/dsk/c1t2d0s0. First, the file system is unmounted. The metainit command with the -t option creates the trans metadevice, d40.

Next, the /etc/vfstab file must be edited to change the entry for the file system to reference the trans metadevice. For example, the following line:

---------------------------------------------------

/dev/md/dsk/d2 /dev/md/rdsk/d2 /home2 ufs 2 yes -

---------------------------------------------------

should be changed to:

-----------------------------------------------------

/dev/md/dsk/d40 /dev/md/rdsk/d40 /home2 ufs 2 yes -

-----------------------------------------------------

Logging becomes effective for the file system when it is remounted.

On subsequent reboots, instead of checking the file system, fsck(1M) displays a logging message for the metadevice:

------------------------------

# reboot
...
/dev/md/rdsk/d40: is logging

------------------------------

How to Create a Trans Metadevice for a File System That Cannot Be Unmounted (DiskSuite Tool)

Use this procedure to log a file system, such as /usr, that cannot be unmounted during normal system operation.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Click the trans metadevice template.

An unassigned and uncommitted Trans Metadevice object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default metadevice name.

Display the object's pop-up menu and choose Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

4. Click Slices to open the Slice Browser.

5. Select the slice or metadevice that contains the file system to be logged, and drag it to the master rectangle in the Trans Metadevice object.

This must be the slice or metadevice that contains the file system.

6. Confirm the device that will be the master.

Click the Continue button on the dialog box that appears.

7. Select the slice or metadevice that will contain the logging device, and drag it to the log rectangle of the Trans Metadevice object.

8. Confirm the slice that will be the log.

Click the Continue button on the dialog box that appears.

9. Click the top rectangle of the Trans Metadevice object then click Commit.

Click the Really Commit button on the confirmation dialog box.

10. To verify that the trans metadevice was committed, display the Configuration Log.

11. Reboot.

After the reboot, logging becomes effective for the file system.

Example - Committed Trans Object for `/usr`

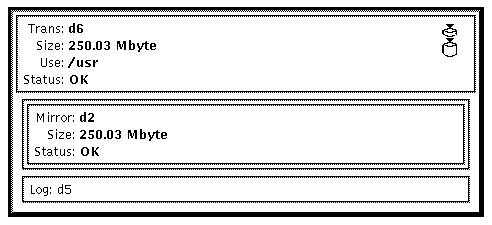

This example shows a trans metadevice that contains the /usr file system.

How to Create a Trans Metadevice for a File System That Cannot Be Unmounted (Command Line)

After checking the prerequisites, and the preliminary information, use this procedure to log a file system, such as /usr, that cannot be unmounted during normal system operation. Refer to the metainit(1M) man page for more information.

Example - Creating a Trans Metadevice for `/usr`

-------------------------------------------------------------------------------------

# metainit -f d20 -t c0t3d0s6 c1t2d0s1
d20: Trans is setup
(Edit the /etc/vfstab file so that the file system references the trans metadevice)
# reboot

-------------------------------------------------------------------------------------

Slice /dev/dsk/c0t3d0s6 contains the /usr file system. The slice to contain the logging device is /dev/dsk/c1t2d0s1. Because /usr cannot be unmounted, the metainit command is run with the -f option to force the creation of the trans device, d20. Next, the line in the /etc/vfstab file that mounts the file system must be changed to reference the trans metadevice. For example, the following line:

------------------------------------------------------

/dev/dsk/c0t3d0s6 /dev/rdsk/c0t3d0s6 /usr ufs 1 no -

------------------------------------------------------

should be changed to:

--------------------------------------------------

/dev/md/dsk/d20 /dev/md/rdsk/d20 /usr ufs 1 no -

--------------------------------------------------

Logging becomes effective for the file system when the system is rebooted.

How to Create a Trans Metadevice Using Mirrors (DiskSuite Tool)

You can increase data availability of a trans metadevice by using mirrors for the master and logging devices. Failure to mirror the logging device could result in significant data loss if the logging slice experiences errors. If you are mirroring the logging device, it is a good idea that the master device be a mirror also.

1. Make sure you have met the prerequisites, and have read the preliminary information.

2. Refer to the tasks on creating mirrors: How to Create a Mirror From Unused Slices (DiskSuite Tool) or How to Create a Mirror From a File System That Cannot Be Unmounted (DiskSuite Tool).

Create two mirrors, one for the master device, and one for the logging device. The mirror for the master device must contain the file system.

3. Refer to "How to Create a Trans Metadevice for a File System That Can Be Unmounted (DiskSuite Tool)."

Use the mirrors created in step 2 for the master and logging devices.

How to Create a Trans Metadevice Using Mirrors (Command Line)

After checking the prerequisites, and the preliminary information, use the metainit(1M) to create the trans metadevice.

Example - Creating a Trans Metadevice Using Mirrors

-------------------------------------------------------------------------------------

# umount /home1
# metainit d64 -t d30 d12
d64: Trans is setup
(Edit the /etc/vfstab file so that the file system references the trans metadevice)
# mount /home1

-------------------------------------------------------------------------------------

Mirror d30 contains a file system mounted on /home1. The mirror to contain the logging device is d12. First, the file system is unmounted. The metainit command with the -t option creates the trans metadevice, d64.

Next, the line in the /etc/vfstab file that mounts the file system must be changed to reference the trans metadevice. For example, the following line:

-----------------------------------------------------

/dev/md/dsk/d30 /dev/md/rdsk/d30 /home1 ufs 2 yes -

-----------------------------------------------------

should be changed to:

-----------------------------------------------------

/dev/md/dsk/d64 /dev/md/rdsk/d64 /home1 ufs 2 yes -

-----------------------------------------------------

Logging becomes effective for the file system when the file system is remounted.

On subsequent file system remounts or system reboots, instead of checking the file system, fsck(1M) displays a logging message for the metadevice:

------------------------------

# reboot
...
/dev/md/rdsk/d64: is logging

------------------------------

Creating Hot Spare Pools

This section describes how to create hot spare pools, add slices to hot spare pools , and assign hot spare pools to metadevices.

Preliminary Information for Creating Hot Spare Pools

A hot spare pool is a collection of slices (hot spares) reserved by DiskSuite to be automatically substituted in case of a slice failure in either a submirror or RAID5 metadevice. Hot spares provide increased data availability for mirrors and RAID5 metadevices.

A hot spare must be a slice; it cannot be a metadevice.

Hot spare pools are used by mirrors and RAID5 metadevices. In the case of a mirror, the hot spare pool is associated with the submirrors.

A hot spare slice can be assigned to one or more hot spare pools.

A hot spare pool can be associated with multiple submirrors or RAID5 metadevices . However, a submirror or RAID5 metadevice can only be associated with one hot spare pool.

Replacement is based on a first fit for the failed slice, and follows the order specified in the hot spare pool.

Hot spares are not intended to remain a permanent part of your configuration. They need to be replaced with repaired or new slices.

Hot spares cannot contain state database replicas.

Ideally, slices added to the hot spare pool should be attached to different controllers. This ensures availability of data due to controller error or failure.

Do not associate hot spares of the wrong size with submirrors or RAID5 metadevices.

Do not assign a hot spare pool to a submirror in a one-way mirror.

Do not have all hot spares within a hot spare pool marked as in-use. If this happens, either add additional hot spares to the hot spare pool, or repair the slices that have been hot spare replaced.

Hot spare pools may be allocated, deallocated, or reassigned at any time unless a slice in the hot spare pool is being used to replace an errored slice in a metadevice it is associated with.

How to Create a Hot Spare Pool (DiskSuite Tool)

You can create an empty hot spare pool, and add hot spares later if necessary. If you choose to do so, skip Step 4 and Step 5 in this task.

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Click the Hot Spare Pool template.

An unassigned and uncommitted Hot Spare Pool object appears on the canvas. The metadevice name is automatically assigned.

3. [Optional] Change the default hot spare pool name.

Display the object's pop-up menu and choose Info. Type the new metadevice name in the Device Name field and click Attach. Then click Close.

4. Click Slices to open the Slice Browser.

5. Select the slices and drag them into the Hot Spare Pool object.

Use Control-click to select multiple slices.

6. Click the top rectangle of the Hot Spare Pool object then click Commit.

7. To verify that the hot spare pool was committed, display the Configuration Log.

Example - Committed Hot Spare Pool Object

This example shows a committed hot spare pool object, hsp000, consisting of slice c0t1d0s2.

Where to Go From Here

To add hot spares to the hot spare pool, refer to "How to Add a Hot Spare Slice to a Hot Spare Pool (DiskSuite Tool)." After creating the hot spare pool , you need to associate it with a submirror or RAID5 metadevice. See "How to Associate a Hot Spare Pool (DiskSuite Tool)."

How to Create a Hot Spare Pool (Command Line)

After checking the prerequisites, and the preliminary information, use the metainit(1M) command to create a hot spare pool. Refer to the metainit(1M) man page for more information.

Example - Creating a Hot Spare Pool

--------------------------------------

# metainit hsp001 c2t2d0s2 c3t2d0s2
hsp001: Hotspare pool is setup

--------------------------------------

The hot spare pool hsp100 contains two disks as the hot spares. The system verifies that the hot spare pool has been set up.

Where to Go From Here

To add more hot spares to the hot spare pool, refer to "How to Add a Hot Spare Slice to a Hot Spare Pool (Command Line)." After creating the hot spare pool, you need to associate it with a submirror or RAID5 metadevice . See "How to Associate a Hot Spare Pool (Command Line)."

How to Associate a Hot Spare Pool (DiskSuite Tool)

A hot spare pool must exist before it can be associated with a submirror or RAID5 metadevice.

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Double-click the mirror or RAID5 metadevice in the Objects list.

The object appears on the canvas.

3. Choose Hot Spare Pools from the Browse menu then choose a hot spare pool object from the list.

The hot spare pool should have slices the same size or larger than the submirrors in the mirror, or the slices in the RAID5 metadevice. Ideally, the Hot Spare Pool contains hot spares that are on a different controller than the slices in the metadevice.

4. Drag the Hot Spare Pool object to the top of the metadevice object.

5. Click the top rectangle of the metadevice object then click Commit.

6. To verify that the hot spare pool was associated, display the Configuration Log.

Example - Hot Spare Pool Associations

This example shows a hot spare pool associated with two submirrors.

How to Associate a Hot Spare Pool (Command Line)

After checking the prerequisites, and the preliminary information, use the metaparam(1M) command to associate a hot spare pool. Refer to the metaparam(1M) man page for more information.

Example - Associating a Hot Spare Pool with Submirrors

----------------------------

# metaparam -h hsp100 d10
# metaparam -h hsp100 d11
# metastat d0
d0: Mirror
    Submirror 0: d10
      State: Okay
    Submirror 1: d11
      State: Okay
...
d10: Submirror of d0
    State: Okay
    Hot spare pool: hsp100
...
d11: Submirror of d0
    State: Okay
    Hot spare pool: hsp100
...

----------------------------

The -h option associates a hot spare pool, hsp100, with two submirrors, d10 and d11, of a mirror, d0. The metastat command shows that the hot spare pool is associated with the submirrors.

Example - Associating a Hot Spare Pool with a RAID5 Metadevice

----------------------------

# metaparam -h hsp001 d10
# metastat d10
d10: RAID
    State: Okay
    Hot spare pool: hsp001
...

----------------------------

The -h option associates a hot spare pool named hsp001 with a RAID5 metadevice named d10. The metastat command shows that the hot spare pool is associated with the RAID5 metadevice.

How to Add a Hot Spare Slice to a Hot Spare Pool (DiskSuite Tool)

You can add a slice to one or more hot spare pools. When a hot spare is added, the existing order of the hot spares is preserved. The new hot spare is added at the end of the list of hot spares in the hot spare pool that is specified.

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Double-click an existing Hot Spare Pool object in the Objects list.

The object appears on the canvas.

3. Click Slices to open the Slice Browser.

4. Select a slice then drag it into the Hot Spare Pool object.

If the hot spare pool already contains slices, locate a slice of the same or greater size than the slice(s) in the hot spare pool.

5. Click the top rectangle of the Hot Spare Pool object then click Commit.

6. To verify that the hot spare pool was committed, display the Configuration Log.

Example - Hot Spare Pool with Two Slices

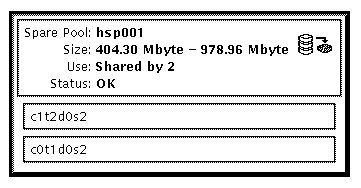

This example shows a hot spare pool that initially consisted of one slice, c1t2d0s2. Slice c0t1d0s2 was added and the hot spare pool was committed.

How to Add a Hot Spare Slice to a Hot Spare Pool (Command Line)

After checking the prerequisites, and the preliminary information, use the metahs(1M) command to add a slice to a hot spare pool. Refer to the metahs(1M) man page for more information.

Note - The added hot spare follows whatever hot spares already exist in the hot spare pool.

Example - Adding a Hot Spare Slice to One Hot Spare Pool

---------------------------------------

# metahs -a hsp001 /dev/dsk/c3t0d0s2
hsp001: Hotspare is added

---------------------------------------

The -a option adds the slice /dev/dsk/c3t0d0s2 to hot spare pool hsp001. The system verifies that the slice has been added to the hot spare pool.

Example - Adding a Hot Spare Slice to All Hot Spare Pools

-------------------------------------

# metahs -a -all /dev/dsk/c3t0d0s2
hsp001: Hotspare is added
hsp002: Hotspare is added
hsp003: Hotspare is added

-------------------------------------

The -a and -all options add the slice /dev/dsk/c3t0d0s2 to all hot spare pool s configured on the system. The system verifies that the slice has been added to all hot spare pools.

How to Change the Associated Hot Spare Pool (DiskSuite Tool)

You can change a hot spare pool's association at any time as long as none of its slices are currently in use as hot spares.

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Double-click the Mirror or RAID5 object with the hot spare pool association to be changed in the Objects list.

The object appears on the canvas.

3. Double-click the Hot Spare Poolobject in the Objects list to use as the replacement.

The object appears on the canvas.

4. Drag the Hot Spare Pool object onto the rectangle in the submirror or RAID5 object containing the hot spare pool to be replaced.

5. Click inside the top rectangle of the object then click Commit.

6. To verify that the hot spare pool was committed, display the Configuration Log.

Note - To avoid data fabrication, DiskSuite does not allow hot sparing of a metadevice if it contains slices in the "Last Erred" state. For more information, refer to "Overview of Replacing and Enabling Slices in Mirrors and RAID5 Metadevices."

Example - Mirror Object with Hot Spare Pool Associations

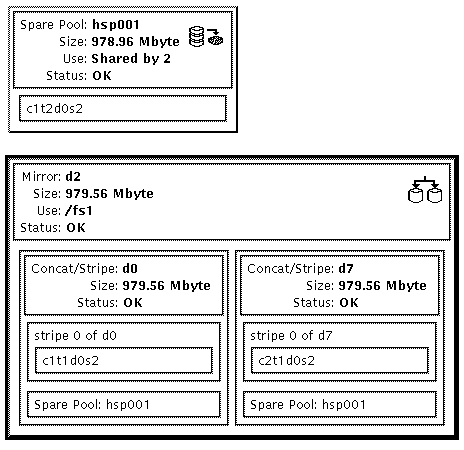

This example shows a mirror that started with hot spare pool hsp000 associated with each submirror. Submirror d7 is now associated with hsp001.

How to Change the Associated Hot Spare Pool (Command Line)

After checking the prerequisites, and the preliminary information, use the metaparam(1M) command to change the metadevice's associated hot spare pool. For more information, refer to the metaparam(1M) man page.

Example - Changing the Hot Spare Pool Association

----------------------------

# metastat d4
d4: RAID
    State: Okay
    Hot spare pool: hsp001
...
# metaparam -h hsp002 d4
# metastat d4
d4: RAID
    State: Okay
    Hot spare pool: hsp002
...

----------------------------

In this example, the hot spare pool hsp001 is currently associated with a RAID5 metadevice named d4. The hot spare pool association is changed to hsp002. The metastat command shows the hot spare pool association before and after.

Creating Disksets

This section describes how to create disksets, and populate them with hosts and disk drives.

Note - Currently, disksets are only supported on SPARCstorage Array disks.

Preliminary Information for Creating Disksets

A diskset is a set of shared disk drives containing DiskSuite objects that can be shared exclusively (but not concurrently) by one or two hosts. Disksets are enablers for host fail-over scenarios.

DiskSuite must be installed on each host that will be connected to the diskset.

There is one metadevice state database per shared diskset and one on the "local" diskset. Each host must have its local metadevice state database set up before you can create disksets.

Unlike local metadevice administration, it is not necessary to create or delete state database replicas manually on the diskset. DiskSuite tries to balance a reasonable number of replicas across all drives in a diskset.

Each host in a diskset must have a local diskset that is separate from the shared diskset. The local diskset for a host consists of all drives that are not part of a shared diskset.

All disks that you plan to share between hosts in the diskset must be connected to each host and must have the same name on each host. Configuring the hardware for use in diskset configuration can be problematic. The disk drives must be symmetric; that is, the shared drives must have the same device number, which implies the same device name/number (controller/target/drive). See "How to Configure Disk Drive Device Names for a Diskset (Command Line)."

You can create a diskset with one host and add the second host later.

You cannot add a drive that is in use to a diskset. Before adding a drive, make sure it is not currently being used for a file system, database, or any other application.

Do not add a drive with existing data that you want to preserve to a diskset; the process of adding it to the diskset repartitions the disk, destroying any data.

When a drive is accepted into a diskset, DiskSuite repartitions it so that the metadevice state database replica for the diskset can be placed on the drive. Drives are repartitioned when they are added to a diskset only if Slice 7 is not set up correctly. A small portion of each drive is reserved in Slice 7 for use by DiskSuite. The remainder of the space on each drive is placed into Slice 0. Any existing data on the disks is lost by the repartitioning. After adding a drive to a diskset, it may be repartitioned as necessary, with the exception that Slice 7 is not altered in any way. If Slice 7 starts at cylinder 0, and is large enough to contain a state database replica, the disk is not repartitioned.

When drives are added to a diskset, DiskSuite re-balances the state database replica s across the remaining drives. Later, if necessary, you can change the replica layout with the metadb(1M) command .

To create a diskset, root must be a member of Group 14, or the ./rhosts file must contain an entry for the other hostname (on each host).

Note - Disksets must be created and configured using the DiskSuite command line interface. After you have created a diskset, you can administer state database replicas, metadevices, and hot spare pools within a diskset using either DiskSuite Tool or the command line utilities.

How to Create a Diskset (Command Line)

The high-level steps in creating a diskset are:

Adding hosts to a diskset (this creates the diskset)

Adding drives to the diskset

Before creating a diskset:

Configure disk drive device names so they have the same name on each host in the diskset.

Connect drives to be shared to both hosts.

Configure local metadevice state database replicas on each host.

Note - If you are not familiar with how to configure the same device names for the shared drives in the diskset, refer to "How to Configure Disk Drive Device Names for a Diskset (Command Line)."

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Create the diskset by defining the host(s) that have access to the devices.

-----------------------------------------------

# metaset -s setname -a -h host...

-----------------------------------------------

In this command,

----------------------------------------------------------------------


-s setname    Specifies the name of a diskset on which
              metaset(1M) will work.

-a            Adds hosts to the named diskset. DiskSuite
              supports a maximum of two hosts per diskset.

-h host...    Specifies one or more hosts to be added to a
              diskset. Adding the first host creates the set. The
              second host can be added later, but it is not
              accepted if all the drives within the set cannot be
              found on the specified host. host is the same name
              found in /etc/nodename.

----------------------------------------------------------------------

3. Check the status of the new diskset with the

metaset(1M)

command.

------------

# metaset

------------

Example - Creating Two Disksets

-------------------------------------------

red# metaset -s relo-red -a -h red blue
red# metaset -s relo-blue -a -h red blue
red# metaset
Set name = relo-red, Set number = 1
Host                Owner
  red
  blue
Set name = relo-blue, Set number = 2
Host                Owner
  red
  blue

-------------------------------------------

In this example, you create two shared disksets, relo-red and relo-blue, from the host red. The host names are red and blue, each with their own local disksets. The metaset command shows the status. At this point, neither set has an owner. The host that adds disks to the set will become the owner by default.

How to Add Drives to a Diskset (Command Line)

The following conditions must be satisfied for a drive to be accepted into a diskset:

It must not be in use within a metadevice, or contain a state database replica .

It must not be currently mounted, swapped on, or otherwise opened for use by an application.

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Add drives to the diskset.

-----------------------------------------------

# metaset -s setname -a drivename...

-----------------------------------------------

In this command,

--------------------------------------------------------------------


-s setname    Specifies the name of a diskset on which
              metaset(1M) will work.

-a            Adds drives to the named diskset.

drivename...  Specifies the drives to add to the diskset. Drive
              names are in the form cxtxdx; no "sx" slice
              identifiers are at the end of the name. They need to
              be the same on all hosts in the diskset.

--------------------------------------------------------------------

The first host to add a drive to a diskset becomes the implicit owner of the diskset.

Warning -

Do not add a disk with data; the process of adding it to the diskset repartitions the disk, destroying any data.

3. Use the

metaset(1M)

command to verify the status of the diskset and drives.

------------

# metaset

------------

Example - Adding Drives to a Diskset

------------------------------------------------------------------------

red# metaset -s relo-red -a c1t2d0 c1t3d0 c2t2d0 c2t3d0 c2t4d0 c2t5d0
red# metaset
Set name = relo-red, Set number = 1
Host                Owner
  red                Yes
  blue
Drive               Dbase
  c1t2d0             Yes
  c1t3d0             Yes
  c2t2d0             Yes
  c2t3d0             Yes
  c2t4d0             Yes
  c2t5d0             Yes
Set name = relo-blue, Set number = 2
Host                Owner
  red
  blue

------------------------------------------------------------------------

In this example, the host names are red and blue, each with their own local disksets. The two shared disksets are relo-red and relo-blue. The disks in the set relo-red are normally accessed by host red, but may be accessed by host blue if red fails. At this point, no disks have been added to the diskset relo-blue.

Creating DiskSuite Objects in a Diskset

After you create a diskset, you can create metadevices and hot spare pools using the drives you added to the diskset. You can use either DiskSuite Tool or the command line utilities.

How to Create a DiskSuite Object in a Diskset (DiskSuite Tool)

To use DiskSuite Tool to create DiskSuite objects in a diskset, make sure you are the diskset owner and enter the command line:

---------------------------------

# metatool -s diskset_name &

---------------------------------

Use the DiskSuite Tool tasks in this chapter to create DiskSuite objects, such as mirrors and trans metadevices.

How to Create a DiskSuite Object in a Diskset (Command Line)

After checking the prerequisites, use the metainit(1M) command to create DiskSuite objects in a diskset. Refer to the metainit(1M) man page for more information.

Example - Creating a Mirror in a Diskset

---------------------------------------------------

# metainit -s relo-red d51 1 1 /dev/dsk/c0t0d0s2
relo-red/d51: Concat/Stripe is setup
# metainit -s relo-red d52 1 1 /dev/dsk/c1t0d0s2
relo-red/d52: Concat/Stripe is setup
# metainit -s relo-red d50 -m d51
relo-red/d50: mirror is setup
# metattach -s relo-red d50 d52
relo-red/d50: Submirror d52 is attached

---------------------------------------------------

This example creates a mirror, d50, in diskset relo-red.

Creating File Systems on Metadevices

This section describes how to create a new file system on a metadevice.

Preliminary Information for Creating File Systems on Metadevices

You can use either the newfs(1M) command or File System Manager to create a file system on a newly created metadevice.

You can create a file system on a stripe, concatenation, mirror, RAID5, or trans metadevice.

How to Create a File System on a Metadevice (File System Manager)

This task assumes you have installed Solstice Storage Manager on the host you are working with, and that you have launched the Storage Manager application. For more information, see Appendix A, "Using Storage Manager."

1. Make sure you have met the prerequisites and have read the preliminary information.

2. Start File System Manager.

If you have appropriately configured DiskSuite Tool, select File System Manager from the DiskSuite Tool "Tools" menu.

If you have not configured DiskSuite Tool as such, you must first launch Storage Manager from the Solstice Launcher.

Note - To configure DiskSuite to work with Storage Manager, refer to "How to Enable DiskSuite to Launch Storage Manager (Command Line)."

3. Within the File System Manager main window, select Create from the Object menu, then select File System to display the Property Book for a new file system.

4. Click Device in the Property Viewer portion of the window.

5. Select and drag a metadevice from DiskSuite Tool's Metadevice Editor window to the Device Name text field.

6. Click Apply.

File System Manager begins building the new file system on the metadevice.

How to Create a File System on a Metadevice (Command Line)

After checking the prerequisites, and the preliminary information, use the newfs(1M) command to create a new file system on a metadevice. Refer to the newfs(1M) man page for more information.

Example - Creating a File System on a Concatenation

----------------------------------------------------------------------------------

# newfs /dev/md/rdsk/d3
newfs: construct a new file system /dev/md/rdsk/d3: (y/n)? y
/dev/md/rdsk/d3:        917280 sectors in 1638 cylinders of 7 tracks, 80 sectors
        447.9MB in 103 cyl groups (16 c/g, 4.38MB/g, 2112 i/g)
super-block backups (for fsck -F ufs -o b=#) at:
 32, 9072, 18112, 27152, 36192, 45232, 54272, 63312, 71712, 80752, 89792,
 98832, 107872, 116912, 125952, 134992, 143392, 152432, 161472, 170512, 179552,
 188592, 197632, 206672, 215072, 224112, 233152, 242192, 251232, 260272,
 269312, 278352, 286752, 295792, 304832, 313872, 322912, 331952, 340992,
 350032, 358432, 367472, 376512, 385552, 394592, 403632, 412672, 421712,
 430112, 439152, 448192, 457232, 466272, 475312, 484352, 493392, 501792,
 510832, 519872, 528912, 537952, 546992, 556032, 565072, 573472, 582512,
 591552, 600592, 609632, 618672, 627712, 636752, 645152, 654192, 663232,
 672272, 681312, 690352, 699392, 708432, 716832, 725872, 734912, 743952,
 752992, 762032, 771072, 780112, 788512, 797552, 806592, 815632, 824672,
 833712, 842752, 851792, 860192, 869232, 878272, 887312, 896352, 905392,
 914432,
# fsck /dev/md/rdsk/d3
** /dev/md/rdsk/d3
** Phase 1 - Check Blocks and Sizes
** Phase 2 - Check Pathnames
** Phase 3 - Check Connectivity
** Phase 4 - Check Reference Counts
** Phase 5 - Check Cyl groups
2 files, 9 used, 942654 free (14 frags, 117830 blocks,  0.0% fragmentation)

----------------------------------------------------------------------------------

This example creates a file system on a concatenation named d3. The fsck(1M) command verifies the new file system.

Example - Creating a File System on a Concatenation Within a Diskset

----------------------------------------------------------------------------------

# newfs /dev/md/relo-red/rdsk/d33
newfs: construct a new file system /dev/md/relo-red/rdsk/d33: (y/n)? y
/dev/md/relo-red/rdsk/d33:        917280 sectors in 1638 cylinders of 7 tracks,
80 sectors
        447.9MB in 103 cyl groups (16 c/g, 4.38MB/g, 2112 i/g)
super-block backups (for fsck -F ufs -o b=#) at:
 32, 9072, 18112, 27152, 36192, 45232, 54272, 63312, 71712, 80752, 89792,
 98832, 107872, 116912, 125952, 134992, 143392, 152432, 161472, 170512, 179552,
 188592, 197632, 206672, 215072, 224112, 233152, 242192, 251232, 260272,
 269312, 278352, 286752, 295792, 304832, 313872, 322912, 331952, 340992,
 350032, 358432, 367472, 376512, 385552, 394592, 403632, 412672, 421712,
 430112, 439152, 448192, 457232, 466272, 475312, 484352, 493392, 501792,
 510832, 519872, 528912, 537952, 546992, 556032, 565072, 573472, 582512,
 591552, 600592, 609632, 618672, 627712, 636752, 645152, 654192, 663232,
 672272, 681312, 690352, 699392, 708432, 716832, 725872, 734912, 743952,
 752992, 762032, 771072, 780112, 788512, 797552, 806592, 815632, 824672,
 833712, 842752, 851792, 860192, 869232, 878272, 887312, 896352, 905392,
 914432,

----------------------------------------------------------------------------------

This example creates a file system on a concatenation name d33 in diskset relo-red.

Note - A file system that resides on a metadevice in a diskset cannot be automatically mounted at boot via the /etc/vfstab file. The necessary diskset RPC daemons (rpc.metad and rpc.metamhd) do not start early enough in the boot process to permit this. Additionally, the ownership of a diskset is lost during a reboot.

Where to Go From Here

If You Want to Make the File System Available ...	Then ...
Now	Mount the file system with the `mount(1M)` command, specifying the metadevice name as the mount device, such as `/dev/md/dsk/d30`.
Automatically when the system boots	Create or modify the file system's entry in the `/etc/vfstab` file, using the metadevice block and raw device names.
As a shared (exported) resource	Create a file system entry in the `/etc/dfs/dfstab` file.

2: Creating DiskSuite Objects

Example - Committed MetaDB Object

Example - Adding a State Database Replica

Example - Adding Two State Database Replicas to the Same Slice

Example - Committed Stripe

Where to Go From Here

Example - Creating a Striped Metadevice of Two Slices With a 32 Kbyte Interlace

Example - Creating a Striped Metadevice of Three Slices

Where to Go From Here

Where to Go From Here

Example - Creating a Concatenation of Two Slices

Example - Creating a Concatenation of Four Slices

Where to Go From Here

Example - Committed Mirror Object

Where to Go From Here

Example - Creating a Two-Way Mirror

Where to Go From Here

How to Create a Mirror From a File System That Can Be Unmounted (DiskSuite Tool)

Example - Committed Mirror Object with a Mounted File System

How to Create a Mirror From a File System That Can Be Unmounted (Command Line)

Example - Creating a Two-Way Mirror

How to Create a Mirror From a File System That Cannot Be Unmounted (DiskSuite Tool)

Example - Committed Mirror for /usr

How to Create a Mirror From a File System That Cannot Be Unmounted (Command Line)

Example - Creating a Mirror From /usr

Example - Creating a Mirror From swap

Example - SPARC: Creating a Mirror From root (/)

Create a Solaris Partition

Install Boot Information

Example - x86: Creating a Mirror From root (/)

Example

Where to Go From Here

Example - Creating a RAID5 Metadevice of Three Slices

Where to Go From Here

How to Create a Trans Metadevice for a File System That Can Be Unmounted (DiskSuite Tool)

Example - Committed Trans Metadevice Object

How to Create a Trans Metadevice for a File System That Can Be Unmounted (Command Line)

Example - Creating a Trans Metadevice With a Slice for the Master Device

Example - Creating a Trans Metadevice With a Stripe for the Master Device

How to Create a Trans Metadevice for a File System That Cannot Be Unmounted (DiskSuite Tool)

Example - Committed Trans Object for /usr

How to Create a Trans Metadevice for a File System That Cannot Be Unmounted (Command Line)

Example - Creating a Trans Metadevice for /usr

Example - Creating a Trans Metadevice Using Mirrors

Example - Committed Hot Spare Pool Object

Where to Go From Here

Example - Creating a Hot Spare Pool

Where to Go From Here

Example - Hot Spare Pool Associations

Example - Associating a Hot Spare Pool with Submirrors

Example - Associating a Hot Spare Pool with a RAID5 Metadevice

Example - Hot Spare Pool with Two Slices

Example - Adding a Hot Spare Slice to One Hot Spare Pool

Example - Adding a Hot Spare Slice to All Hot Spare Pools

Example - Mirror Object with Hot Spare Pool Associations

Example - Changing the Hot Spare Pool Association

Example - Creating Two Disksets

Example - Adding Drives to a Diskset

Example - Creating a Mirror in a Diskset

Example - Creating a File System on a Concatenation

Example - Creating a File System on a Concatenation Within a Diskset

Where to Go From Here

Example - Committed Mirror for `/usr`

Example - Creating a Mirror From `/usr`

Example - Creating a Mirror From `swap`

Example - SPARC: Creating a Mirror From root (`/`)

Example - x86: Creating a Mirror From root (`/`)

Example - Committed Trans Object for `/usr`

Example - Creating a Trans Metadevice for `/usr`
