General structure

Overview The general structure of the code that is used to plot figures is as follows:

# Plot
f, ax = plt.subplots(...)
ax = sns...

# Legend
plt.title()
plt.xlabel()
plt.ylabel()

We note that the plt.subplots() command enables to specify the figure size.


Basic plots The main basic plots are summarized in the table below:

Type Command and parameters Illustration
Scatter plot sns.scatterplot(
  x, y, hue, size
)
Line plot sns.lineplot(
  x, y, hue, size
)
Bar chart

Histogram		 sns.barplot(
  x, y, hue
)
Box plot sns.boxplot(
  x, y, hue
)
Heatmap sns.heatmap(
  data, cmap, linecolor,
  linewidth, cbar
)

where the meaning of parameters are summarized in the table below:

Command Description Use case
hue Color of a line / point / border 'red'
fill Color of an area 'red'
size Size of a line / point 4
linetype Shape of a line 'dashed'
alpha Transparency, between 0 and 1 0.3

Advanced features

Text annotation Plots can have text annotations with the following commands:

Command Illustration
ax.text(
  x, y, s, color
)

Additional elements We can add objects on the plot with the following commands:

Type Command Illustration

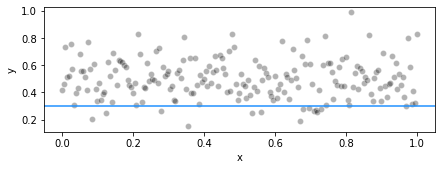

Line ax.axvline(
  x, ymin, ymax, color,
  linewidth, linestyle
)
ax.axhline(
  y, xmin, xmax, color,
  linewidth, linestyle
)
Rectangle ax.axvspan(
  xmin, xmax, ymin, ymax,
  color, fill, alpha
)

Last touch

Legend The title of legends can be customized to the plot with the commands summarized below:

Element Command
Title / subtitle of the plot ax.set_title('text', loc, pad)
plt.suptitle('text', x, y, size, ha)
Title of the $x$ / $y$ axis ax.set_xlabel('text') / ax.set_ylabel('text')
Title of the size / color via ax.get_legend_handles_labels()
Caption of the plot ax.text('text', x, y, fontsize)

This results in the following plot:


Double axes A plot can have more than one axis with the plt.twinx() command. It is done as follows:

ax2 = plt.twinx()

Figure saving There are two main steps to save a plot:
