Data science tools


Data retrieval with SQL
Star

sql query hive presto mysql postgresql

By Afshine Amidi and Shervine Amidi

General concepts

Structured Query Language Structured Query Language, abbreviated as SQL, is a language that is largely used in the industry to query data from databases.


Query structure Queries are usually structured as follows:

-- Select columns                    mandatory
SELECT
    col_1,
    col_2,
     ... ,
    col_n

-- Source of data                    mandatory
FROM table t

-- Gather info from other sources    optional
JOIN other_table ot
  ON (t.key = ot.key)

-- Conditions                        optional
WHERE some_condition(s)

-- Aggregating                       optional
GROUP BY col_group_list

-- Sorting values                    optional
ORDER BY col_order_list

-- Restricting aggregated values     optional
HAVING some_condition(s)

-- Limiting number of rows           optional
LIMIT some_value

Remark: the SELECT DISTINCT command can be used to ensure not having duplicate rows.


Condition A condition is of the following format:

some_col some_operator some_col_or_value

where some_operator can be among the following common operations:

Category Operation Command
General Equality / non-equality = / !=, <>
Inequalities >=, >, <, <=
Belonging IN (val_1, ..., val_n)
And / or AND / OR
Check for missing value IS NULL
Between bounds BETWEEN val_1 AND val_2
Strings Pattern matching LIKE '%val%'

Joins Two tables table_1 and table_2 can be joined in the following way:

...
FROM table_1 t1
type_of_join table_2 t2
  ON (t2.key = t1.key)
...
where the different type_of_join commands are summarized in the table below:

Type of join Illustration
INNER JOIN Inner join
LEFT JOIN Left join
RIGHT JOIN Right join
FULL JOIN Full outer join

Remark: joining every row of table 1 with every row of table 2 can be done with the CROSS JOIN command, and is commonly known as the cartesian product.


Aggregations

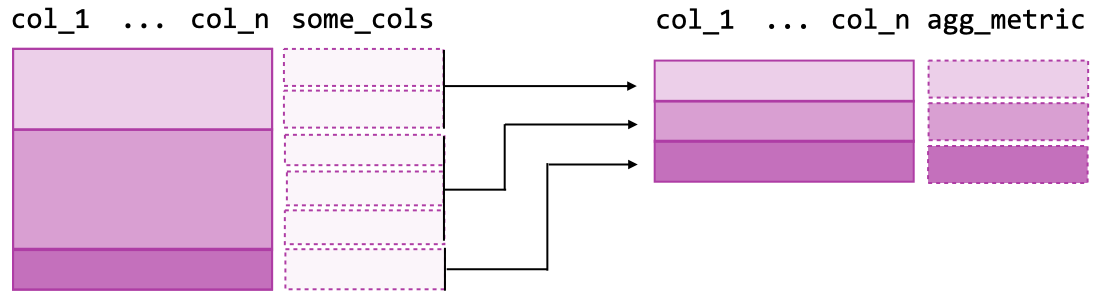

Grouping data Aggregate metrics are computed on grouped data in the following way:


The SQL command is as follows:

SELECT
    col_1,
    agg_function(col_2)
FROM table
GROUP BY col_1

Grouping sets The GROUPING SETS command is useful when there is a need to compute aggregations across different sets of dimensions at a time. Below is an example of how all aggregations across two dimensions are computed:

SELECT
    col_1,
    col_2,
    agg_function(col_3)
FROM table
GROUP BY col_1, col_2
GROUPING SETS (
    (col_1),
    (col_2),
    (col_1, col_2)
)

Aggregation functions The table below summarizes the main aggregate functions that can be used in an aggregation query:

Category Operation Command
Values Mean AVG(col)
Percentile PERCENTILE_APPROX(col, p)
Sum / # of instances SUM(col) / COUNT(col)
Max / min MAX(col) / MIN(col)
Variance / standard deviation VAR(col) / STDEV(col)
Arrays Concatenate into array collect_list(col)

Remark: the median can be computed using the PERCENTILE_APPROX function with p equal to 0.5.


Filtering The table below highlights the differences between the WHERE and HAVING commands:

WHERE HAVING
• Filter condition applies to individual rows
• Statement placed right after FROM
• Filter condition applies to aggregates
• Statement placed right after GROUP BY

Remark: if WHERE and HAVING are both in the same query, WHERE will be executed first.


Window functions

Definition A window function computes a metric over groups and has the following structure:


The SQL command is as follows:

some_window_function() OVER(PARTITION BY some_col ORDER BY another_col)

Remark: window functions are only allowed in the SELECT clause.


Row numbering The table below summarizes the main commands that rank each row across specified groups, ordered by a specific column:

Command Description Example
ROW_NUMBER() Ties are given different ranks 1, 2, 3, 4
RANK() Ties are given same rank and skip numbers 1, 2, 2, 4
DENSE_RANK() Ties are given same rank and do not skip numbers 1, 2, 2, 3

Values The following window functions allow to keep track of specific types of values with respect to the partition:

Command Description
FIRST_VALUE(col) Takes the first value of the column
LAST_VALUE(col) Takes the last value of the column
NTH_VALUE(col, n) Takes the $n^{\textrm{th}}$ value of the column
LAG(col, n) Takes the $n^{\textrm{th}}$ previous value of the column
LEAD(col, n) Takes the $n^{\textrm{th}}$ following value of the column

Advanced functions

SQL tips In order to keep the query in a clear and concise format, the following tricks are often done:

Operation Command Description
Renaming columns SELECT operation_on_column AS col_name New column names shown in query results
Abbreviating tables FROM table_1 t1 Abbreviation used within query for simplicity in notations
Simplifying group by GROUP BY col_number_list Specify column position in SELECT clause instead of whole column names
Limiting results LIMIT n Display only n rows

Sorting values The query results can be sorted along a given set of columns using the following command:

... [query] ...
ORDER BY col_list

Remark: by default, the command sorts in ascending order. If we want to sort it in descending order, the DESC command needs to be used after the column.


Column types In order to ensure that a column or value is of one specific data type, the following command is used:

CAST(some_col_or_value AS data_type)
where data_type is one of the following:

Data type Description Example of value or column
INT Integer 2
DOUBLE Numerical value 2.0
STRING String 'teddy bear'
VARCHAR
DATE Date '2020-01-01'
TIMESTAMP Timestamp '2020-01-01 00:00:00.000'

Remark: if the column contains data of different types, the TRY_CAST() command will convert unknown types to NULL instead of throwing an error.


Column manipulation The main functions used to manipulate columns are described in the table below:

Category Operation Command
General Take first non-NULL value COALESCE(col_1, ..., col_n)
Create a new column concatenating existing ones CONCAT(col_1, ..., col_n)
Value Round value to n decimals ROUND(col, n)
Take the floor / ceiling of a number FLOOR(col) / CEIL(col)
String Converts string column to lower / upper case LOWER(col) / UPPER(col)
Replace occurrences of old in col to new REPLACE(col, old, new)
Take the substring of col, with a given start and length SUBSTR(col, start, length)
Remove spaces from the left / right / both sides LTRIM(col) / RTRIM(col) / TRIM(col)
Length of the string LENGTH(col)
Date Truncate at a given granularity
('year', 'month', 'week')
DATE_TRUNC(time_dimension, col)
Add / subtract n days to date DATE_ADD(col, n) / DATE_SUB(col, n)
Difference between two dates in days DATEDIFF(col_1, col_2)
Extract information (YEAR, MONTH, DAY) EXTRACT(time_dimension FROM col)
Current date / timestamp CURRENT_DATE / CURRENT_TIMESTAMP

Conditional column A column can take different values with respect to a particular set of conditions with the CASE WHEN command as follows:

CASE WHEN some_condition THEN some_value
               ...
     WHEN some_other_condition THEN some_other_value
     ELSE some_other_value_n END

Combining results The table below summarizes the main ways to combine results in queries:

Category Command Remarks
Union UNION Guarantees distinct rows
UNION ALL Potential newly-formed duplicates are kept
Intersection INTERSECT Keeps observations that are in all selected queries

Common table expression A common way of handling complex queries is to have temporary result sets coming from intermediary queries, which are called common table expressions (abbreviated CTE), that increase the readability of the overall query. It is done thanks to the WITH ... AS ... command as follows:

WITH cte_1 AS (
SELECT ...
),

...

cte_n AS (
SELECT ...
)

SELECT ...
FROM ...

Table manipulation

Table creation The creation of a table is done as follows:

CREATE [table_type] TABLE [creation_type] table_name(
  col_1 data_type_1,
         ...       ,
  col_n data_type_n
)
[options];
where [table_type], [creation_type] and [options] are one of the following:

Category Command Description
Table type Blank Default table
EXTERNAL TABLE External table
Creation type Blank Creates table and overwrites current one if it exists
IF NOT EXISTS Only creates table if it does not exist
Options location 'path_to_hdfs_folder' Populate table with data from HDFS folder
stored as data_format Stores the table in a specific data format, e.g. parquet, orc or avro

Data insertion New data can either append or overwrite already existing data in a given table as follows:

WITH ...                           -- optional
INSERT [insert_type] table_name    -- mandatory
SELECT ...;                        -- mandatory
where [insert_type] is among the following:

Command Description
OVERWRITE Overwrites existing data
INTO Appends to existing data

Dropping table Tables are dropped in the following way:

DROP TABLE table_name;

View Instead of using a complicated query, the latter can be saved as a view which can then be used to get the data. A view is created with the following command:

CREATE VIEW view_name AS complicated_query;

Remark: a view does not create any physical table and is instead seen as a shortcut.
