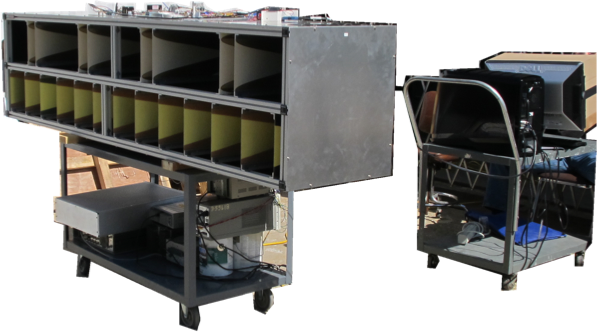

A real-time acquisition and processing architecture has been developed for an ultrawideband (UWB) S-band (2-4 GHz) multiple-input multiple-output (MIMO) phased array radar system that facilitates greater than 10 Hz imaging rates, providing a video-like radar image of what is behind a con- crete wall. Video rate imaging enhances the interpretability of range vs. range through-wall and free-space radar imagery. Images are formed without a-priori information. Video frame- rate imaging is achieved by designing an electronically switched bi-static array using high-performance microwave components, a multi-threaded data pipeline, and efficient hardware-accelerated processing algorithms. Experiments successfully image low radar cross section (RCS) objects, fast moving objects in free-space, and a human behind a 10 cm-thick solid concrete wall.
