img_3_006_5.jpg  326KB JPEG image, 1612 x 1092 pixels

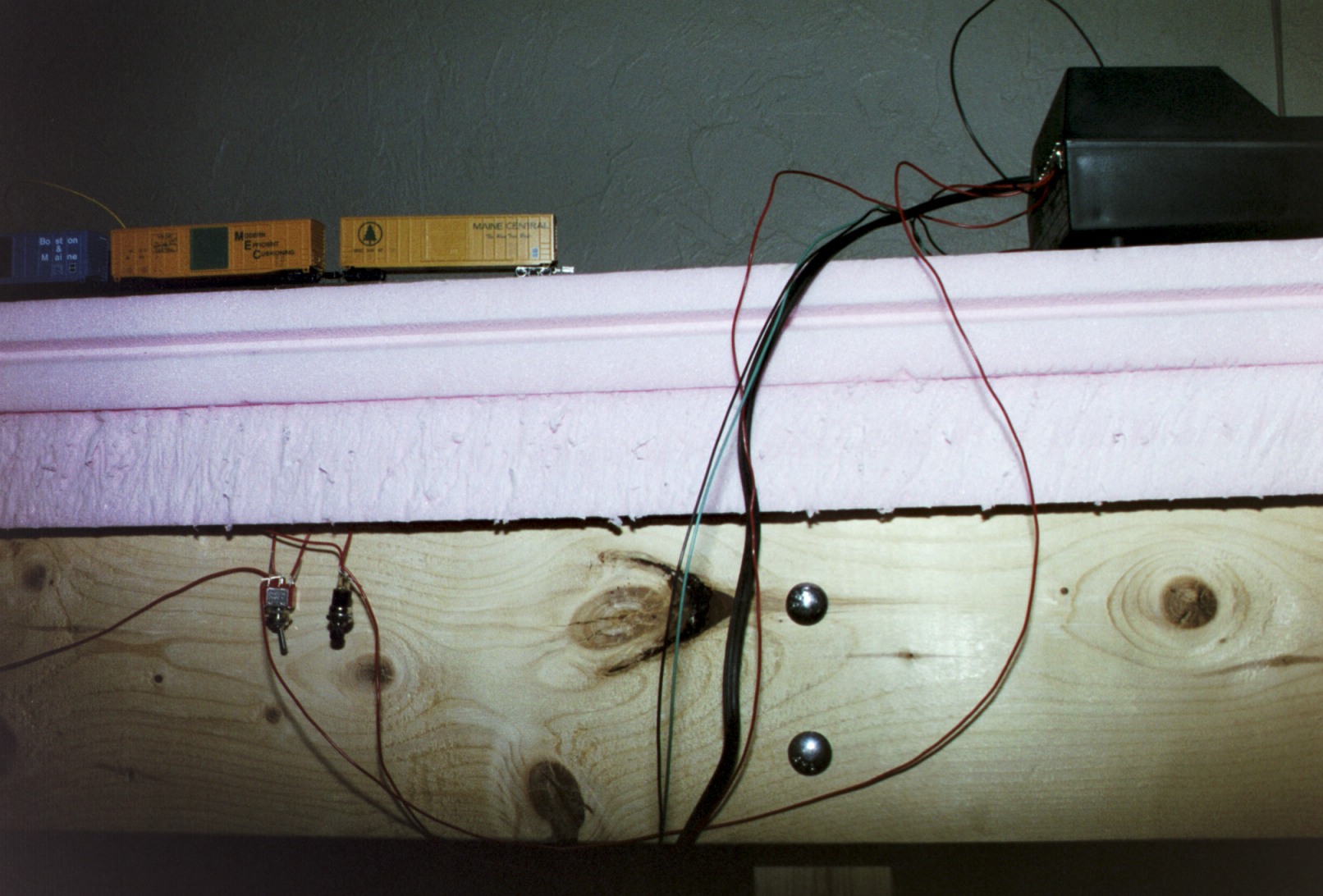

Description : Some of the wiring isn't terribly polished yet. Red wires carry 16VAC; this switch and button control the right-hand switch machine.
Date : 28 Mar 2004
