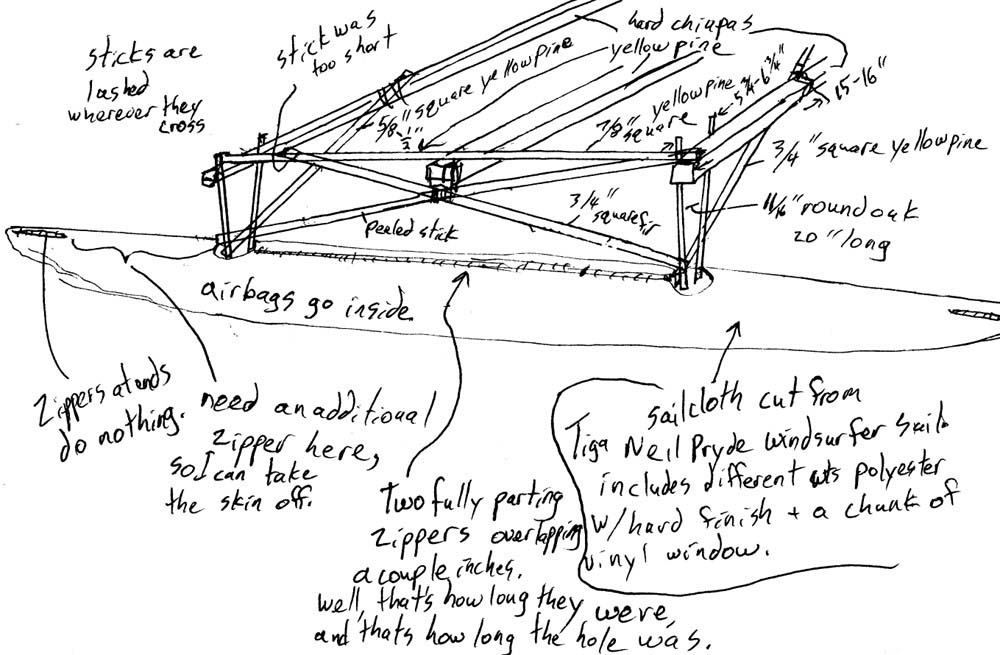

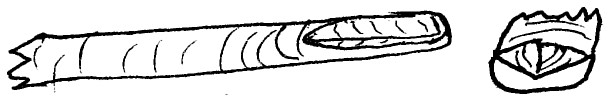

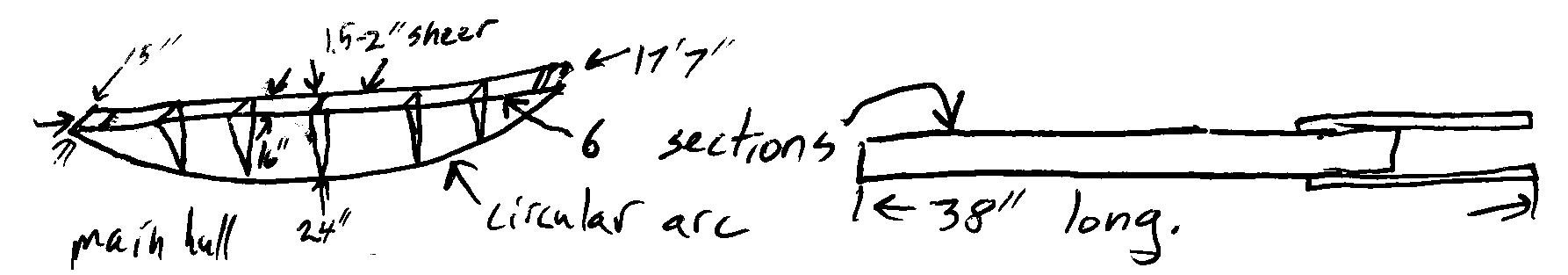

Outrigger
and attachment braces outrigpersp800.gifAlldwg.html
Click on any drawing to see a higher resolution (~100k) version. Copyright
2001 Tim Anderson
Outrigger
and attachment braces outrigpersp800.gif

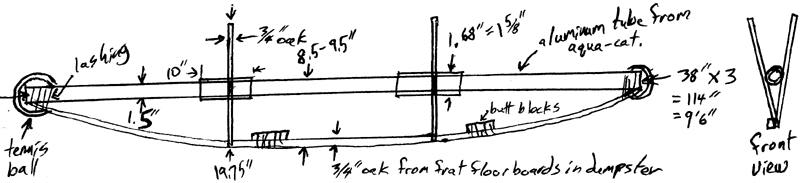

Outrigger
internal frame outrigframe800.gif

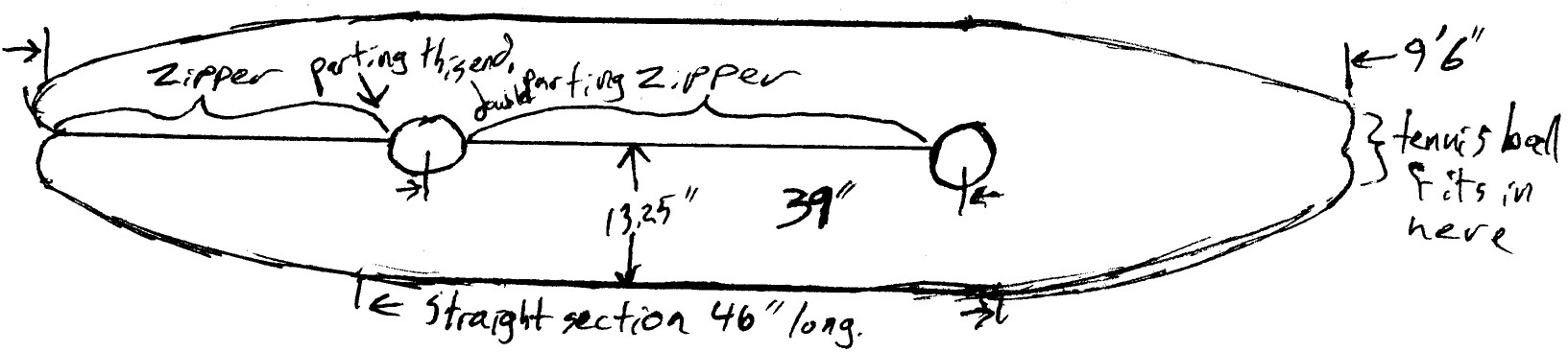

Outrigger
skin pattern outrigskin800.gif

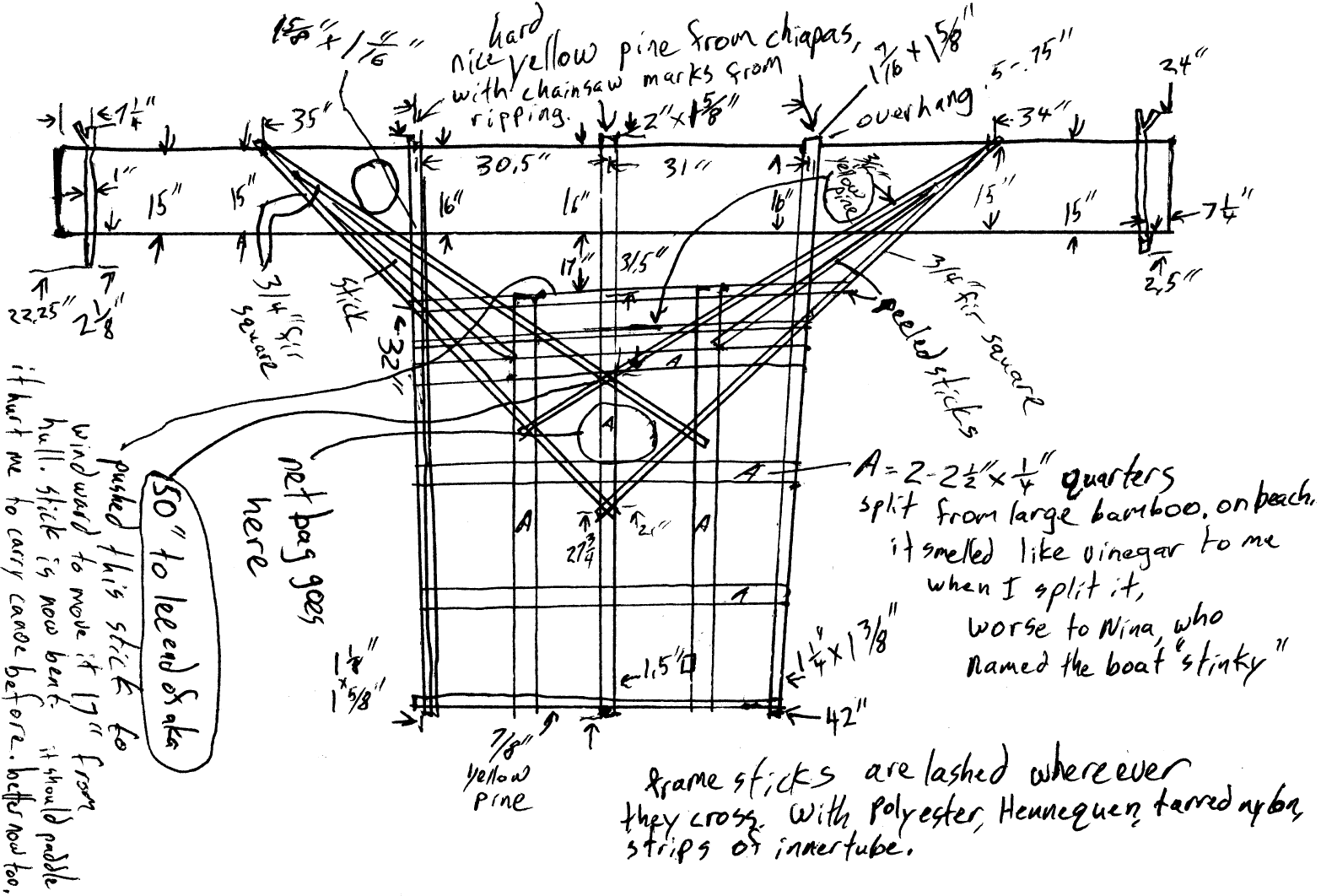

Deck and
deck lattice deck800.gif

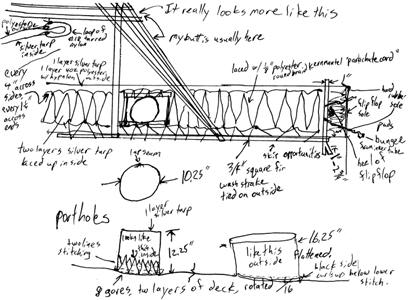

Deck and
skin lacing details deckdetail800.gif
Copyright 2001 Tim Anderson
